MK3723

Features: • Packaged in 8 pin SOIC• 3.3 V only operating voltage• 2 MHz to 14 MHz VCXO operation• Ideal for 26 MHz from a 28 MHz crystal• Uses an inexpensive external crystal• On-chip VCXO (patented) with pull range of 200 ppm (minimum)• VCXO tuning voltag...

product image

MK3723 Picture
See larger image
SeekIC No. : 004421731 Detail

MK3723: Features: • Packaged in 8 pin SOIC• 3.3 V only operating voltage• 2 MHz to 14 MHz VCXO operation• Ideal for 26 MHz from a 28 MHz crystal• Uses an inexpensive external c...

MK3723 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK3723
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 8 pin SOIC
• 3.3 V only operating voltage
• 2 MHz to 14 MHz VCXO operation
• Ideal for 26 MHz from a 28 MHz crystal
• Uses an inexpensive external crystal
• On-chip VCXO (patented) with pull range of 200 ppm (minimum)
• VCXO tuning voltage of 0 to 3.3 V
• 12 mA output drive capability at TTL levels
• Advanced, low power, sub-micron CMOS process
• For frequencies between 16.2 MHz and 28 MHz  use the MK3721S. For higher than 28 MHz, use the MK3732-05


Pinout

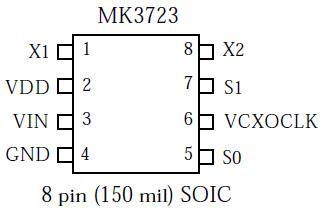

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs Referenced to GND
-0.5
VDD+0.5V
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 10 seconds
260
Storage temperature
-65
150



Description

The MK3723 is ICS/MicroClock's lowest cost, low jitter, high performance 3.3 volt VCXO designed to replace expensive VCXO modules. The on-chip Voltage Controlled Crystal Oscillator accepts a 0 to 3.3 V input voltage to cause the output clocks to vary by ±100 ppm. Using ICS/MicroClock's patented VCXO techniques, the MK3723 uses an inexpensive external pullable crystal in the range of 16 - 28 MHz to produce a VCXO output clock that is a divide by 2, 4, 6, or 8 or the crystal frequency.

ICS/MicroClock of MK3723 manufactures the largest variety of Set-Top Box and multimedia clock synthesizers for all applications. If more clock outputs are needed, see the MK3732 or MK377x family of parts. Consult ICS/MicroClock to eliminate

VCXOs, crystals and oscillators from your board.
