MK3732-08

Features: • Packaged in 20 pin SSOP (QSOP)• Replaces a VCXO and oscillator• Uses an inexpensive pullable crystal• On-chip patented VCXO with pull range of 230 ppm (±115 ppm) minimum• VCXO tuning voltage of 0 to 3.3 V• Advanced, low power, sub-micron CMOS process...

product image

MK3732-08 Picture
See larger image
SeekIC No. : 004421736 Detail

MK3732-08: Features: • Packaged in 20 pin SSOP (QSOP)• Replaces a VCXO and oscillator• Uses an inexpensive pullable crystal• On-chip patented VCXO with pull range of 230 ppm (±115 ppm) ...

MK3732-08 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK3732-08
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 20 pin SSOP (QSOP)
• Replaces a VCXO and oscillator
• Uses an inexpensive pullable crystal
• On-chip patented VCXO with pull range of 230 ppm (±115 ppm) minimum
• VCXO tuning voltage of 0 to 3.3 V
• Advanced, low power, sub-micron CMOS process
• 3.3V operating voltage
• Available in industrial temperature range

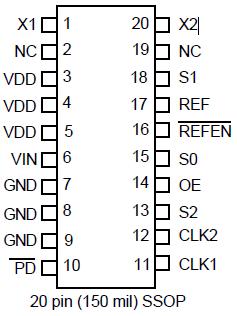

Pinout

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs and Clock Outputs Referenced to GND
-0.5
VDD+0.5V
V
Ambient Operating Temperature Commercial version
0
70
  Industrial version
-40

85
Soldering Temperature Max of 10 seconds
260
Storage temperature
-65
150



Description

The MK3732-08 is a low cost, low jitter, high performance VCXO and PLL clock synthesizer designed to replace expensive discrete VCXOs and multipliers. The on-chip Voltage Controlled Crystal Oscillator (VCXO) accepts a 0 to 3.3 V input voltage to cause the output clocks to vary by ±100 ppm. Using ICS/MicroClock's patented VCXO and analog/digital Phase-Locked Loop (PLL) techniques, the MK3732-08 uses an inexpensive 17.664 MHz or 24.576 MHz pullable crystal input to produce one or two output clocks.

ICS MK3732-08 manufactures the largest variety of xDSL clock synthesizers for all applications. Consult ICS to eliminate VCXOs, crystals and oscillators from your board.
