MK5811S

Series: -
PLL: Yes
Number of Circuits: 1
Ratio - Input:Output: 1:1
Differential - Input:Output: No/No
Mounting Type: Surface Mount
Packaging: Tube
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Output: LVCMOS
Type: Clock Generator
Operating Temperature: 0°C ~ 85°C
Input: Clock, Crystal
Divider/Multiplier: No/Yes
Manufacturer: IDT, Integrated Device Technology Inc
Frequency - Max: 32MHz
Voltage - Supply: 3 V ~ 3.63 V


Specifications

Input Frequency 4 MHz to 32 MHz No. of Inputs 1 Temperature C Output Frequency 4 MHz to 32 MHz Input Type Clock,Crystal No. of Outputs 1 Output Type LVCMOS Voltage 3.3 V Package SOIC 8 Speed NA Spread Type Down,Center Output Supply Voltage (VDDO) 3.3 V


Description

LOW EMI CLOCK GENERATOR
The MK5811S generates a low EMI output clock from a clock or crystal input. The part is designed to dither a high emissions clock to lower EMI in consumer applications. Using IDT's proprietary mix of analog and digital Phase-Locked Loop (PLL) technology, the MK5811S spreads the frequency spectrum of the output, reducing the frequency amplitude peaks by several dB. The MK5811S offers both centered and down spread from a high speed clock input.

For different multiplier configurations, use the MK5812 (2x) or the MK5814 (4x).

IDT of MK5811S offers many other clocks for computers and computer peripherals. Consult IDT when you need to remove crystals and oscillators from your board.
The MK5811A is recommended for new designs.

MK5811S features:

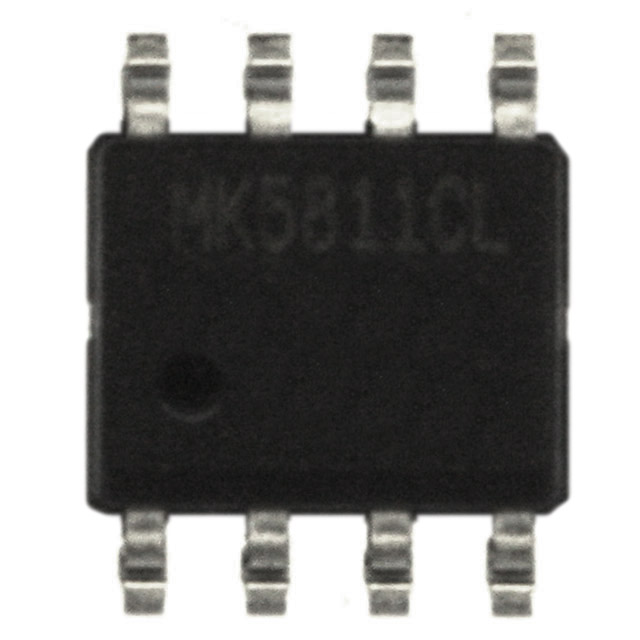

Packaged in 8-pin SOIC

Available in Pb (lead) free package

Provides a spread spectrum output clock

Supports flat panel controllers

Accepts a clock or crystal input (provides same frequency dithered output)

Input frequency range of 4 to 32 MHz

Output frequency range of 4 to 32 MHz

1X Frequency Multiplication

Center and down spread

Peak reduction by 8 dB to 16 dB typical on 3rd through 19th odd harmonics

Low EMI feature can be disabled

Includes power down

Operating voltage of 3.3 V

Advanced, low-power CMOS process

Direct pin replacement for the MK1726-01 device

For different multiplier configurations, use the MK5812 (2x) or the MK5814 (4x).

The MK5811A is recommended for new designs.

Parameters:

Technical/Catalog Information	MK5811S
Vendor	IDT, Integrated Device Technology Inc
Category	Integrated Circuits (ICs)
Type	Clock Generator
Voltage - Supply	3 V ~ 3.63 V
Number of Outputs	1
Input	Clock, Crystal
Output	LVCMOS
Frequency-Max	32MHz
Package / Case	8-SOIC
Packaging	Tube
Operating Temperature	0°C ~ 70°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MK5811S MK5811S
