ML2111 General Description
ML2111 Maximum Ratings
Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.
Supply Voltage
|VA+|, |VD+| - |VA-|, |VD-| ...................................... 13V
VA+, VD+ to LSh ..................................................... 13V
Inputs ...................... |VA+, VD+| +0.3V to |VA-, VD-| -0.3V
Outputs ................... |VA+, VD+| +0.3V to |VA-, VD-| -0.3V
|VA+| to |VD+| ........................................................ ±0.3V
Junction Temperature .............................................. 150ºC
Storage Temperature Range ...................... 65ºC to 150ºC
Lead Temperature (Soldering, 10 sec) ..................... 300ºC
Thermal Resistance (qJA)
20-Pin PDIP ...................................................... 67ºC/W
20-Pin SOIC ..................................................... 95ºC/W
ML2111 Features
·Specified for operation up to 150kHz
·Center frequency x Q product £ 5MHz
·Separate highpass, notch, allpass, bandpass, and lowpass outputs
·Center frequency accuracy of ±0.4% or ±0.8% max.
·Q accuracy of ±4% or ±8% max.
·Clock inputs are TTL or CMOS compatible
·Single 5V (±2.25V) or ±5V supply operation

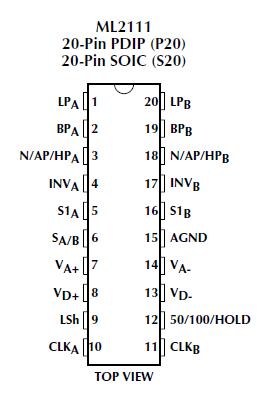

ML2111 Connection Diagram
