Product Details

Description



Features:

• USB 1.1 compliant
• Built-in USB transceiver circuit
• Full-speed (12 Mb/sec) support
• Supports printer device class, image device class, and Mass Storage device class
• Supports three types of transfer; control transfer, bulk transfer, and interrupt transfer
• Built-in FIFOs for control transfer Two 8-byte FIFOs (one for receive FIFO and the other for transmit FIFO)
• Built-in FIFOs for bulk transfer (available for either receive FIFO or transmit FIFO) One 64-byte FIFO Two 64-byte FIFOs
• Built-in FIFO for interrupt transfer One 8-byte FIFO
• Supports one control endpoint, two bulk endpoint addresses, and one interrupt endpoint address
• Two 64-byte FIFOs enable fast BulkOut transfer and BulkIn transfer
• Supports 8 bit/16 bit DMA transfer
• Supports protocol stall
• VCC is 3.0 V to 3.6 V
• Supporting dual power supply enables 5 V application interface
• Built-in 48 MHz oscillator circuit
• Package options:
   44-pin plastic QFP (QFP44-P-910-0.80-2K) (Product name: ML60851DGA)
   44-pin plastic TQFP (TQFP44-P-1010-0.80-K) (Product name: ML60851DTB)


Pinout

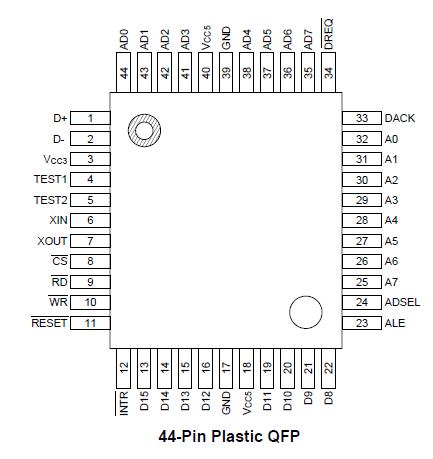

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power Supply 3
VCC3
-
0.3 to +4.6
V
Power Supply 5
VCC5
-
0.5 to +6.5
V
Input Voltage
VI
-
0.3 to VCC5 + 0.3
V
Storage Temperature
TSTG
-
55 to +150



Description

The ML60851D is a general purpose Universal Serial Bus (USB) device controller. The ML60851D provides a USB interface, control/status block, application interface, and FIFOs. The FIFO interface and two types of transfer have been optimized for BulkOut devices such as printers and BulkIn devices such as digital still cameras and image scanners. In addition, Mass Storage devices are also applicable to this device.
