General Description
ML64168 General Description
The ML64168 is a low power 4-bit microcontroller incorporating the Oki's original CPU core nX-4/30. The ML64168 provides a minimum instruction execution time of 4.3s (@700kHz).
The ML64168 contains 8160-byte program memory, 512-nibble data memory, three 4-bit input-output ports, 4-bit input port, 4-bit output port, 2-channel RC oscillation type A/D converter, LCD driver for up to 120 segments, and buzzer output port.
The ML64P168 is the one-time-programmable ROM version of ML64168, having one-time PROM(OTP) as internal program memory. The ML64P168 is used to evaluate the software development.
ML64168 Maximum Ratings
|
Parameter |
Symbol |
Condition |
Rating |
Unit |
| Power Supply Voltage 1 |
VDD1 |
Ta = 25 |
0.3 to +1.6 |
V |
| Power Supply Voltage 2 |
VDD2 |
Ta = 25 |
0.3 to +2.9 |
V |
| Power Supply Voltage 3 |
VDD3 |
Ta = 25 |
0.3 to +4.2 |
V |
| Power Supply Voltage 4 |
VDD4 |
Ta = 25 |
0.3 to +5.5 |
V |
| Power Supply Voltage 5 |
VDD5 |
Ta = 25 |
0.3 to +6.8 |
V |
| Power Supply Voltage 6 |
VDD |
Ta = 25 |
0.3 to +6.0 |
V |
| Input Voltage 1 |
VIN1 |
VDD Input, Ta = 25 |
0.3 to VDD + 0.3 |
V |
| Input Voltage 2 |
VIN2 |
VDD Input, Ta = 25 |
0.3 to VDDI + 0.3 |
V |
| Input Voltage 3 |
VIN3 |
VDD1 Input, Ta = 25 |
0.3 to VDDI + 0.3 |
V |
| Output Voltage 1 |
VOUT1 |
VDD1 Output, Ta =25 |
0.3 to VDDI + 0.3 |
V |
| Output Voltage 2 |
VOUT2 |
VDD2 Output, Ta =25 |
0.3 to VDD2 + 0.3 |
V |
| Output Voltage 3 |
VOUT3 |
VDD3 Output, Ta =25 |
0.3 to VDD3 + 0.3 |
V |
| Output Voltage 4 |
VOUT4 |
VDD4 Output, Ta =25 |
0.3 to VDD4 + 0.3 |
V |
| Output Voltage 5 |
VOUT5 |
VDD5 Output, Ta =25 |
0.3 to VDD5 + 0.3 |
V |
| Output Voltage 6 |
VOUT6 |
VDD Output, Ta =25 |
0.3 to VDD + 0.3 |
V |
| Power Dissipation |
PD |
Ta = -40 to + 85°C QFP80-P-1420-0.80-BK |
191 |
mW |
|
Ta = -40 to + 85°C QFP80-P-1414-0.65-K |
167 |
mW | ||
|
Ta = -40 to + 85°C TQFP80-P-1212-0.50-K |
149 |
mW | ||
| Storage Temperature |
TSTG |
- |
55 to +150 |
ML64168 Features
`Processing speed Minimum instruction execution time : 4.3 s @700 kHz 91.6 s @32.768 kHz
`Clock generation circuit Low-speed clock : 32.768 kHz crystal oscillator High-speed clock : 700 kHz RC oscillator ( with an external resistor ) CPU clock is selectable as Low-speed clock / High-speed clock by software.
`Operating voltage : 1.5 V spec. / 3.0 V spec. ( selectable by mask option ) 1.25 to 1.70 V (1.5 V spec.) 2.0 to 3.50 V (3.0 V spec.) 2.2 to 3.50 V (3.0 V spec., 1/2duty)
`Operating temperature : - 40 to +85°C
`Memory space Internal program memory : 8160 bytes Internal data memory : 512 nibbles
`RC oscillation type A/D converter : 2 channels Time division 2-channel method Counter A : 1 / ( 104 * 8 ) * 1 Counter B : 1 / 214 * 1
ML64168 Typical Application
The ML64168 is best suited for low power, high precision thermometers and hygrometers.

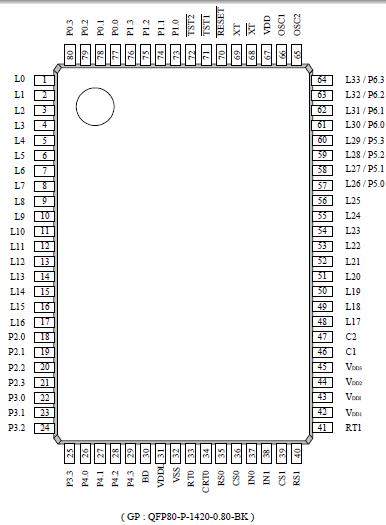

ML64168 Connection Diagram
