Part Number: ML65T541*
Description: The ML65T541 is a non-inverting octal buffer/line driver.The high operating frequency (66MHz driving a...
- Table of contents:
ML65T541*
-
Suppliers
DataSheet
General Description
ML65T541* General Description
The ML65T541 is a non-inverting octal buffer/line driver.The high operating frequency (66MHz driving a 50pFload) and low propagation delay (2ns) make it ideal forvery high speed applications such as processor busbuffering cache/main memory control.
The ML65T541 uses a unique analog implementation toeliminate the delays inherent in traditional digital designs. Schottky clamps reduce undershoot and overshoot, andspecial output driver circuits limit ground bounce. The ML65T541 conforms to the pinout and functionality of theindustry standard FCT541 and is intended for applicationswhere propagation delay is critical to the system design.
ML65T541* Maximum Ratings
VCC ....................................................... 0.3V to 7V
DC Input voltage ....................... 0.3 to VCC + 0.3V
AC Input voltage (< 20ns)................................3.0V
DC Output voltage ..................... 0.3 to VCC + 0.3V
Output sink current (per pin) ......................... 120mA
Storage temperature ........................ 65 to 150
Junction temperature ....................................... 150
Thermal Impedance (qJA)
SOIC .............................................................. 96/W
QSOP............................................................ 100/W
DC Input voltage ....................... 0.3 to VCC + 0.3V
AC Input voltage (< 20ns)................................3.0V
DC Output voltage ..................... 0.3 to VCC + 0.3V
Output sink current (per pin) ......................... 120mA
Storage temperature ........................ 65 to 150
Junction temperature ....................................... 150
Thermal Impedance (qJA)
SOIC .............................................................. 96/W
QSOP............................................................ 100/W
ML65T541* Features
Low propagation delay - 2.0ns
Fast 8-bit buffer/line driver with three-statecapability on the output
Schottky diode clamps on all inputs to handleundershoot and overshoot
Onboard schottky diodes minimize noise
Ground bounce controlled outputs
Industry standard FCT541 type pinout
Applications include high speed cache memory, mainmemory, processor bus buffering, and graphics cards
Fast 8-bit buffer/line driver with three-statecapability on the output
Schottky diode clamps on all inputs to handleundershoot and overshoot
Onboard schottky diodes minimize noise
Ground bounce controlled outputs
Industry standard FCT541 type pinout
Applications include high speed cache memory, mainmemory, processor bus buffering, and graphics cards
ML65T541* Typical Application
There are a wide variety of needs for an extremely fastbuffers in high speed processor system designs likePentium, PowerPC, Mips, Sparc, Alpha and other RISCprocessors. These applications are either in the cachememory area or the main memory (DRAM) area. Inaddition, fast buffers find applications in high speed graphicsand multimediaapplications. The high capacitive loadingdue to multiplexed address lines on the system bus demandexternal buffers to take up the excess drive current. Theneeded current to skew the transitions between rise and falltimes must be done without adding excessive propagationdelay. The ML65T541 is equipped with Schottky diodesto clean up ringing from overshoot and undershoot causedby reflections in unterminated board traces.

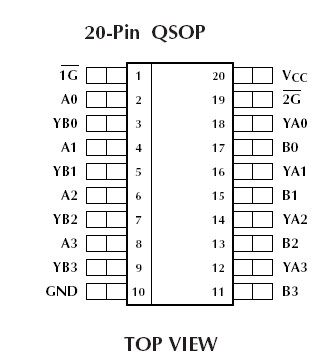

ML65T541* Connection Diagram
