General Description
ML6691* General Description
The ML6691 implements the upper portion of the physicallayer for the Fast Ethernet 100BASE-T standard. Functionscontained in the ML6691 include a 4B/5B encoder/decoder, a Stream Cipher scrambler/descrambler, andcollision detect. Additional functions of the ML6691 -accessible through the two-wire MII managementinterface - include full duplex operation, loopback,power down mode, and MII isolation.
The ML6691 is designed to interface to a 100BASE-TEthernet Media Access Controller (MAC) via the MII(Media Independent Interface) on one side, and a100BASE-X PMD transceiver on the other side. Acomplete 100BASE-TX physical layer (PHY) solution isrealized using the ML6691, the ML6673, and one of theavailable clock recovery/generation devices. A 100BASEFXphysical layer solution is implemented by disabling thescrambler function of the ML6691 and using an external optical PMD.
ML6691* Maximum Ratings
Supply Voltage (VCC) ............................................... 6.0V
GND................................................ 0.3V to VCC + 0.3V
Logic Inputs .................................. 0.3V to VCC + 0.3V
Input Current per Pin.......................................... ±25mA
Storage Temperature........................... 65 to +150
Package Dissipation at TA = 25 ...................... 750mW
Lead Temperature (soldering 10 sec.) ................. 300
ML6691* Features
Conforms to the Fast Ethernet 100BASE-TIEEE 802.3m standard
Integrated 4B/5B encoder/decoder
Integrated Stream Cipher scrambler/descrambler
Compliant MII interface
Two-wire serial interface management port forconfiguration and control
On-chip 25 MHz crystal oscillator
Interfaces to either AMD's PDT/PDR (AM79865/79866)or Motorola's FCG (MC68836)
Used with ML6673 for 100BASE-TX solutions
44-pin PLCC package
Integrated 4B/5B encoder/decoder
Integrated Stream Cipher scrambler/descrambler
Compliant MII interface
Two-wire serial interface management port forconfiguration and control
On-chip 25 MHz crystal oscillator
Interfaces to either AMD's PDT/PDR (AM79865/79866)or Motorola's FCG (MC68836)
Used with ML6673 for 100BASE-TX solutions
44-pin PLCC package

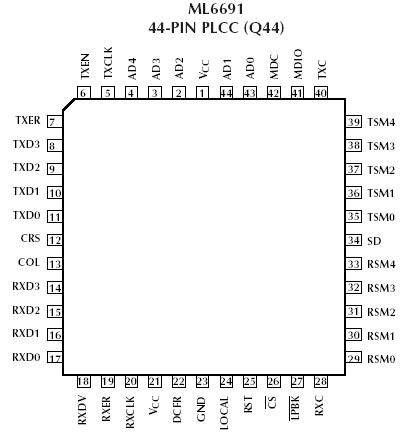

ML6691* Connection Diagram
