Part Number: ML7021
Description: The ML7021 is an improved version of the MSM7602 with the reduced cancelable echo delay time and addit...
- Table of contents:
ML7021
-
Suppliers
DataSheet
General Description
ML7021 General Description
The ML7021 is an improved version of the MSM7602 with the reduced cancelable echo delay time and additional 2100Hz tone detection function.
The ML7021 is a low-power CMOS device for canceling echo (in an acoustic system or telephone line) generated in a speech path.
Echo is canceled, in digital signal processing, by estimating the echo path and generating a pseudo echo signal.
The ML7021 makes possible a quality conversation by controlling the noise level and preventing howling with howling detector, double talk detector, attenuation function, and a gain control function. The devise also controls the low level noise with a center clipping function.
Further, the ML7021 I/O interface supports m-law PCM . The use of a single chip CODEC, such as the MSM7566/7704 (3 V) or MSM7543/7533 (5 V), allows a simplified and efficient echo canceler configuration.
ML7021 Maximum Ratings
|
Parameter |
Symbol |
Condition |
Rating |
Units |
| Power Supply Voltage |
VDD |
Ta = 25 |
0.3 to +7 |
V |
| Input Voltage |
VIN |
0.3 to VDD + 0.3 |
V | |
| Power Dissipation |
PD |
1 |
W | |
| Storage Temperature |
TSTG |
- |
55 to +150 |
ML7021 Features
• Tone disable function
• Cancelable echo delay time: For a single chip: 8 ms (max.)
• Echo attenuation : 30 dB (typ.)
• Clock frequency : 19.2 MHz External input and internal oscillator circuit are provided.
• Power supply voltage : 2.7 V to 5.5 V
• Package: 28-pin plastic SSOP (SSOP28-P-485-0.65-K) (Product name : ML7021MB)
• Cancelable echo delay time: For a single chip: 8 ms (max.)
• Echo attenuation : 30 dB (typ.)
• Clock frequency : 19.2 MHz External input and internal oscillator circuit are provided.
• Power supply voltage : 2.7 V to 5.5 V
• Package: 28-pin plastic SSOP (SSOP28-P-485-0.65-K) (Product name : ML7021MB)

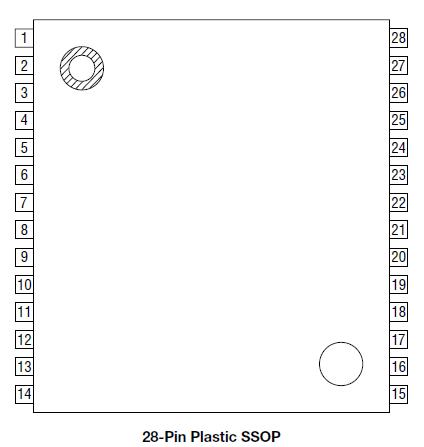

ML7021 Connection Diagram
ML7021
PDF/DataSheet Download
- Datasheet: ML7021
- File Size: 250562 KB
- Manufacturer: OKI [OKI electronic componets]
- Click here to Download
