ML70Q5111LA

Features: • Compliant to Bluetooth Specification (Ver. 1.1)• The ARM7TDMI is installed as the CPU (operation at a maximum of 32 MHz in this LSI)• 1-Ch, 16-bit auto-reload timer• 3-Ch, 18-bit auto-reload timer• Interrupt controller (17 causes)• Built-in 8...

product image

ML70Q5111LA Picture
See larger image
SeekIC No. : 004422242 Detail

ML70Q5111LA: Features: • Compliant to Bluetooth Specification (Ver. 1.1)• The ARM7TDMI is installed as the CPU (operation at a maximum of 32 MHz in this LSI)• 1-Ch, 16-bit auto-reload t...

ML70Q5111LA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ML70Q5111LA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compliant to Bluetooth Specification (Ver. 1.1)
• The ARM7TDMI is installed as the CPU (operation at a maximum of 32 MHz in this LSI)
• 1-Ch, 16-bit auto-reload timer
• 3-Ch, 18-bit auto-reload timer
• Interrupt controller (17 causes)
• Built-in 8 kbyte, 4-Way Unified Cache
• Built-in 32 kbyte
• Up to a total of 2 Mbyte of SRAM, ROM, and Flash ROM can be connected to the external memory bus.
• Built-in 4Mbit Flash ROM
- Endurance 104 cycles
• Selectable master clock (12/13/16 MHz).
• PCM-CVSD transcoder is installed.
• Installed interfaces:
- UART(*) interface (Up to 921.6 Kbps)
- USB(*) interface (conforms to USB1.1)
- UART/synchronous serial port interface
- General-purpose I/O interface (programmable interrupts)
- PCM interface (PCMLinear/A-law/-law can be selected)
- JTAG interface
  (*) This mark indicates interfaces that support the HCI command.
• Built-in Regulator and Power-on-Reset
• Single power supply voltage: 3.0 to 3.6 V
• Package: 144-pin BGA (P-LFBGA144-1111-0.80-MC)
  (Dimensions: 11 mm * 11 mm * 1.5 mm; pin pitch: 0.8 mm)



Pinout

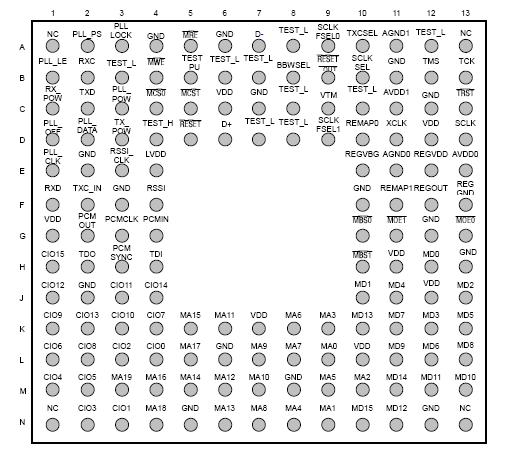

Connection Diagram


Specifications

Parameter Symbol Conditions Rating Unit
Power supply voltage VDD - 0.3 to +4.5 V
Input voltage VI - 0.3 to +4.5 V
Allowable power dissipation Pd - 1.35 W
Storage temperature Tstg - 55 to 150 °C



Description

The ML70Q5111LA is a CMOS digital IC for use in 2.4 GHz band Bluetooth™ systems. This IC ML70Q5111LA incorporates the ARM7TDMI as the CPU core, features a highly expandable architecture, and supports the interfaces for a variety of applications. Used in conjunction with the ML7050LA (Bluetooth RF Transceiver IC) and the OKI Bluetooth Protocol Stack Software, data/voice communications are possible while maintaining interconnectivity with other Bluetooth systems. Also this IC is equiped with 4 Mbit Flash ROM to reduce the external parts.
