Purchase MM1492AF, In-stock MM1492AF From SeekIC.
MFG:MITUSMI Package Cooled:SOP-44/TUBE D/C:0138+/0132
Part Number: MM1492AF
MFG: MITUSMI
Package Cooled: SOP-44/TUBE
D/C: 0138+/0132
- Table of contents:
MM1492AF
-
Suppliers
DataSheet
General Description
MM1492AF Maximum Ratings
|
Item |
Symbol |
Ratings |
Units |
|
Storage temparature |
TSTG |
-40~+25 |
|
|
Operating temparature |
TOPR |
-20~+75 |
|
|
Supply voltage |
VCC max. |
12 |
V |
|
Allowable loss |
Pd |
1100 |
mW |
MM1492AF Features
· Serial control by I2C BUS
· 5 inputs, 2 outputs
· 1 Y/C (S pin) inputs, 2 outputs
· The video and audio switches can be controlled independently
· Built-in 6dB amp for video
· Built-in Y/C (S pin) mix circuit
· One of the two audio outputs has a built-in -6dB ON/OFF switch
· Slave address can be changed. 90H and 92H possible.
· Audio muting from external pin possible
· Maintains high impedance even when I2C BUS line (SDA, SCL) power supply is off.
· Built-in 3 value discrimination function built-in
· Built-in power ON reset function
· Supports 2 screens and P-IN-P. Also supports external output (monitor) pin.
· 5 inputs, 2 outputs
· 1 Y/C (S pin) inputs, 2 outputs
· The video and audio switches can be controlled independently
· Built-in 6dB amp for video
· Built-in Y/C (S pin) mix circuit
· One of the two audio outputs has a built-in -6dB ON/OFF switch
· Slave address can be changed. 90H and 92H possible.
· Audio muting from external pin possible
· Maintains high impedance even when I2C BUS line (SDA, SCL) power supply is off.
· Built-in 3 value discrimination function built-in
· Built-in power ON reset function
· Supports 2 screens and P-IN-P. Also supports external output (monitor) pin.
MM1492AF Typical Application
· TV
· Other video equipment

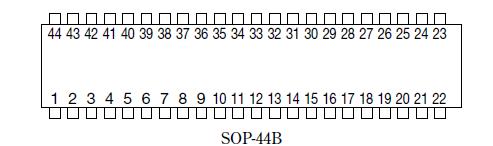

MM1492AF Connection Diagram
MM1492AF
PDF/DataSheet Download
- Datasheet: MM1492AF
- File Size: 374867 KB
- Manufacturer: MITSUMI [Mitsumi Electronics, Corp.]
- Click here to Download
