Part Number: MM1567



MFG: MITSUMI

Package Cooled: SMD

D/C: 07+



Urgent Purchase

MM1567 Maximum Ratings

Item
Symbol
Rating
Unit
Storage temperature
TSTG
65 ~ +150
°C
Operating temperature
TOPR
-40~+85
°C
Supply voltage
VCCmax.
7
V
Power dissipation *1
Pd
1.4
W

MM1567 Features

` Has SAG correction pin.
` 3-line drive possible with 75 driver.
` Built-in fourth low pass filter.
  Frequency response: 6.75MHz ± 1dB / 27MHz 27dB min.
` Built-in 6dB amp.
` Built-in power save function.
` S/N=80dB typ.(Y/C mix:74dB typ.)
` For aerial discharge, ±15kV ESD protection withstand pressure (IEC standard)
` Component circuit control pin allows support for RGB signals.

MM1567 Typical Application

· DVD players
· Digital STB
· Other digital video equipment

MM1567 Connection Diagram

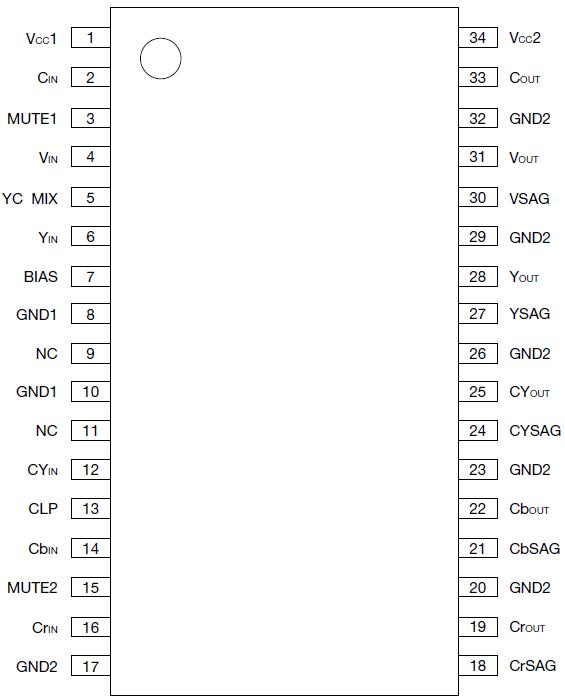

MM1567 Connection Diagram
