MM5486

Features: Continuous brightness control Serial data input/outut External load input Cascaded operation capability Wide power supply operation TTL compatibility 33 outputs, 15 mA sink capability Alphanumeric capabilityApplicationCOPSTM or microprocessor displays Industrial control indicator Relay ...

product image

MM5486 Picture
See larger image
SeekIC No. : 004422882 Detail

MM5486: Features: Continuous brightness control Serial data input/outut External load input Cascaded operation capability Wide power supply operation TTL compatibility 33 outputs, 15 mA sink capability Alp...

MM5486 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MM5486
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Continuous brightness control
Serial data input/outut
External load input
Cascaded operation capability
Wide power supply operation
TTL compatibility
33 outputs, 15 mA sink capability
Alphanumeric capability



Application

COPSTM or microprocessor displays
Industrial control indicator
Relay driver
Digital clock, thermometer, counter, voltmeter
Instrumentation readouts


Pinout

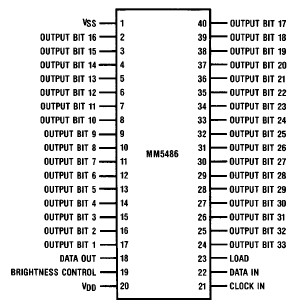

Connection Diagram


Specifications

Voltage at Any Pin
Operating Temperature
Storage Temperature
Power Dissipation at 25
Molded DIP Package, Board Mount
Molded DIP Package, Sket Mount
Junction Temperature
Lead Temperature (Soldering, 10 seconds)
VSS to VSS + 12V
 - 25 to + 85
 - 65 to + 150

2.5W*
2.3W**
+ 150
300


*Molded DIP Package, Board Mount, JA = 49/W, Derate 20.4 mW/ above 25.
**Molded DIP Package, Socket Mount, JA = 54/W, Derate 18.5 mW/ above 25.




Description

The MM5486 is a monolithic MOS integrated circuit utilizing N-channel metal-gate low-threshold, enhancement mode and ion-implanted depletion mode devices. It is available in a 40-pin molded dual-in-line package. The MM5486 is designed to drive common anode-separate cathode LED displays. A single pin controls the LED display brightness by setting a reference current through a variable resistor connected to VDD.
