MM58341

Features: Direct interface to high voltage display Serial data input No external resistors required Wide display power supply operation LSTTL compatible inputs Software compatible with NS display driver family Compatible with alphanumeric or dot matrix displays Display blanking control input Simp...

product image

MM58341 Picture
See larger image
SeekIC No. : 004422977 Detail

MM58341: Features: Direct interface to high voltage display Serial data input No external resistors required Wide display power supply operation LSTTL compatible inputs Software compatible with NS display d...

MM58341 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MM58341
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Direct interface to high voltage display
Serial data input
No external resistors required
Wide display power supply operation
LSTTL compatible inputs
Software compatible with NS display driver family
Compatible with alphanumeric or dot matrix displays
Display blanking control input
Simple to cascade


Application

COPSTM or microprocessor-driven displays
Instrumentation readouts
Industrial control indicator
Digital clock, thermostat, counter, voltmeter
Word processor text displays
Automotive dashboards


Pinout

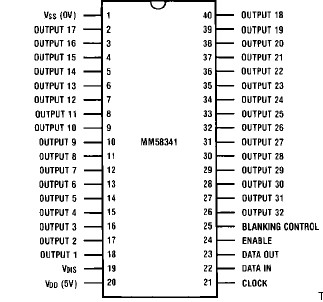

Connection Diagram


Specifications

Voltage at Any Input Pin VDD a 0.3V
Voltage at Any Display Pin VDD
VDD a lVDISl
Storage Temperature b65
Power Dissipation at 25
Molded DIP Package, Board Mount
Molded DIP Package, Sket Mount
*Molded DIP Package, Board Mount,
Derate 21.7 mW Above 25
**Molded DIP Package, Sket Mount,
Derate 19.6 mW/ Above 25
Junction Temperature
Lead Temp. (TL) (Soldering 10 seconds)
VDD + 0.3V to VSS - 0.3V
VDD to VDD - 36.5V
36.5V
b65 to +150

2.28W*
2.05W**
JA = 46/W
JA = 51/W

130
260



Description

The MM58341 is a monolithic MOS integrated circuit utilizing CMOS metal gate low threshold P and N-channel devices. It is available both in 40-pin molded dual-in-line packages or as dice. The MM58341 is particularly suited for driving high voltage (35V max) vacuum fluorescent (VF) displays, (e.g., a 32-digit alphanumeric or dot matrix display).
