General Description
MM74C928 General Description
The MM74C925, MM74C926, MM74C927 and MM74C928 CMOS counters consist of a 4-digit counter, an internal output latch, NPN output sourcing drivers for a 7-segment display, and an internal multiplexing circuitry with four multiplexing outputs. The multiplexing circuit has its own free-running oscillator, and requires no external clock. The counters advance on negative edge of clock. A HIGH signal on the Reset input will reset the counter to zero, and reset the carry-out LOW. A LOW signal on the Latch Enable input will latch the number in the counters into the internal output latches. A HIGH signal on Display Select input will select the number in the counter to be displayed; a LOW level signal on the Display Select will select the number in the output latch to be displayed.
The MM74C925 is a 4-decade counter and has Latch Enable, Clock and Reset inputs.
The MM74C926 is like the MM74C925 except that it has a display select and a carry-out used for cascading counters. The carry-out signal goes HIGH at 6000, goes back LOW at 0000.
The MM74C927 is like the MM74C926 except the second most significant digit divides by 6 rather than 10. Thus, if the clock input frequency is 10 Hz, the display would read tenths of seconds and minutes (i.e., 9:59.9).
The MM74C928 is like the MM74C926 except the most significant digit divides by 2 rather than 10 and the carry-out is an overflow indicator which is HIGH at 2000, and it goes back LOW only when the counter is reset. Thus, this is a 3½-digit counter.
MM74C928 Maximum Ratings
Voltage at Any Output Pin GND - 0.3V to VCC + 0.3V
Voltage at Any Input Pin GND - 0.3V to +15V
Operating Temperature
Range (TA) -40°C to +85°C
Storage Temperature
Range -65°C to +150°C
Power Dissipation (PD) Refer to PD(MAX) vs TA Graph
Operating VCC Range 3V to 6V
VCC 6.5V
Lead Temperature
(Soldering, 10 seconds) 260°C
Voltage at Any Input Pin GND - 0.3V to +15V
Operating Temperature
Range (TA) -40°C to +85°C
Storage Temperature
Range -65°C to +150°C
Power Dissipation (PD) Refer to PD(MAX) vs TA Graph
Operating VCC Range 3V to 6V
VCC 6.5V
Lead Temperature
(Soldering, 10 seconds) 260°C
MM74C928 Features
Wide supply voltage range: 3V to 6V
Guaranteed noise margin: 1V
High noise immunity: 0.45 VCC (typ.)
High segment sourcing current: 40 mA @ VCC - 1.6V, VCC = 5V
Internal multiplexing circuitry
Guaranteed noise margin: 1V
High noise immunity: 0.45 VCC (typ.)
High segment sourcing current: 40 mA @ VCC - 1.6V, VCC = 5V
Internal multiplexing circuitry
MM74C928
PDF/DataSheet Download
- Datasheet: MM74C928
- File Size: 209489 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·MM70C95
- NSC [National Semiconductor]
- TRI-STATE Hex Inverters, Buffers
- 163181 KB
- ·MM70C96
- NSC [National Semiconductor]
- TRI-STATE Hex Inverters, Buffers
- 163181 KB
- ·MM70C97
- NSC [National Semiconductor]
- TRI-STATE Hex Inverters, Buffers
- 163181 KB
- ·MM70C98
- NSC [National Semiconductor]
- TRI-STATE Hex Inverters, Buffers
- 163181 KB
- ·MM74165N
- FAIRCHILD [Fairchild Semiconductor]
- Parallel-Load 8-Bit Shift Register
- 52186 KB
- ·MM74C00
- NSC [National Semiconductor]
- Quad 2-Input NAND Gate, Quad 2-Input NOR Gate, Hex Inverter, Triple 3-Input NAND Gate, Dual 4-Input NAND Gate
- 80555 KB
- ·MM74C00M
- FAIRCHILD [Fairchild Semiconductor]
- Quad 2-Input NAND Gate . Quad 2-Input NOR Gate . Hex Inverter
- 80555 KB
- ·MM74C00N
- FAIRCHILD [Fairchild Semiconductor]
- Quad 2-Input NAND Gate . Quad 2-Input NOR Gate . Hex Inverter
- 80555 KB
MM74C928 Relative Products
MM74C927
The MM74C925, MM74C926, MM74C927 and MM74C928 CMOS counters consist of a 4-digit counter, an internal output latch, NPN output sourcing drivers for a 7-segment display, and an internal multiplexing circuitry with four multiplexing outputs. The multiplexing ...

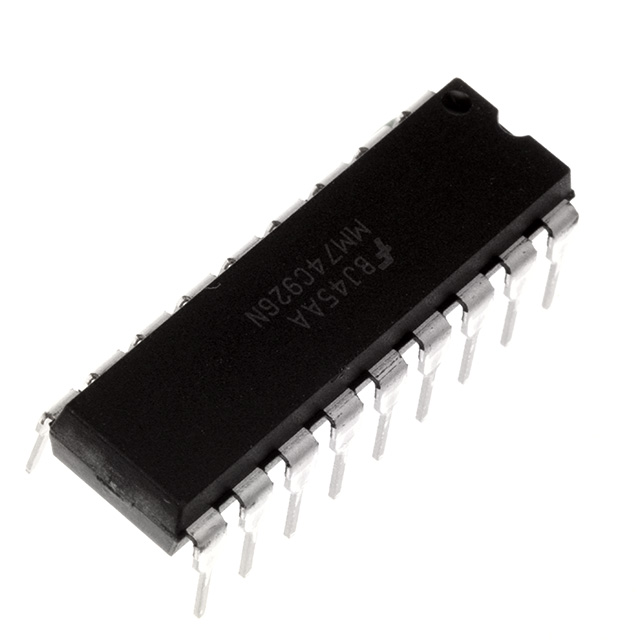

MM74C926N
