Purchase MM88C30, In-stock MM88C30 From SeekIC.
MFG:FSC Package Cooled:DIP, SOIC D/C:08+
- Table of contents:
MM88C30
-
Suppliers
DataSheet
General Description
MM88C30 Maximum Ratings
| Voltage at Any Pin (Note 2) |
-0.3V to VCC +16V |
| Operating Temperature Range |
-40 to +85 |
| Storage Temperature |
-65 to +150 |
| Power Dissipation (PD) | |
| Dual-In-Line |
700 mW |
| Small Outline |
500 mW |
| Operating VCC Range |
3V to 15V |
| Absolute Maximum VCC |
18V |
| Average Current at Output | |
| MM88C30 |
50 mA |
| MM88C29 |
25 mA |
| Maximum Junction Temperature, Tj |
150 |
| Lead Temperature | |
| (Soldering, 10 seconds) |
260 |
Note 1: "Absolute Maximum Ratings" are those values beyond which the safety of the device cannot be guaranteed. Except for "Operating Temperature Range" they are not meant to imply that the devices should be operated at these limits. The Electrical Characteristics tables provide conditions for actual device operation.
Note 2: AC Parameters are guaranteed by DC correlated testing.
MM88C30 Features
· Wide supply voltage range: 3V to 15V
· High noise immunity: 0.45 VCC (typ.)
· Low output ON resistance: 20W (typ.)

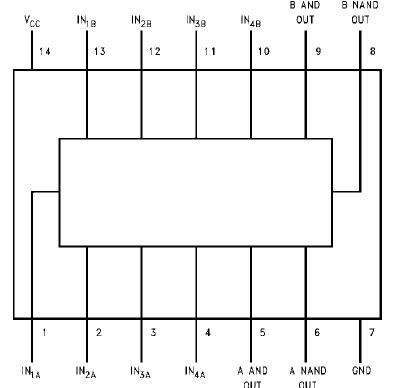

MM88C30 Connection Diagram
MM88C30
