MMBD1703 Selling Leads, Price trend , Fairchild Semiconductor, MMBD1703 DataSheet download, circuit diagram from SeekIC.com

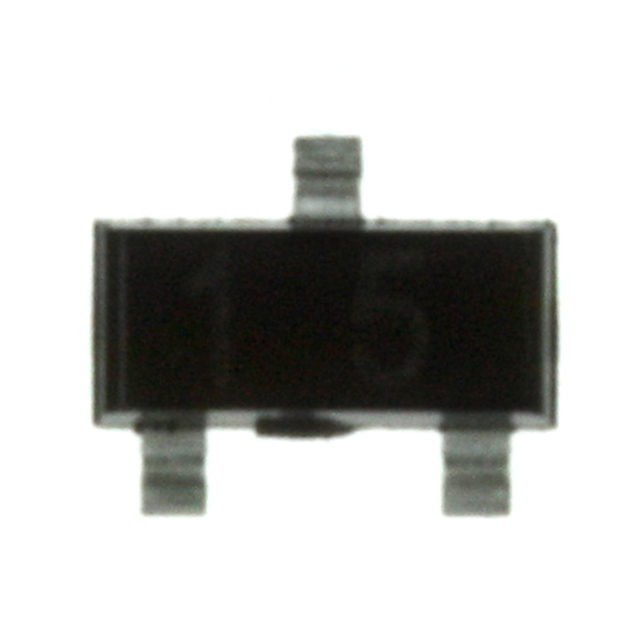

See larger image

SeekIC No. : 00178538 Detail

MMBD1703: Rectifiers High Cond Lo Leakage

MMBD1703 Data Sheet

Get Latest Price

Part Number:: MMBD1703
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMBD 7000 LT1 evaluate
US $.04 - .27 / Piece

Diodes (General Purpose, Power, Switching) AF DIODE 100V 0.2A
MMBD 914 LT1 evaluate
US $.03 - .25 / Piece

Diodes (General Purpose, Power, Switching) AF DIODE 100V 0.25A
MMBD 914 LT3 evaluate
US $.02 - .02 / Piece

Diodes (General Purpose, Power, Switching) Silicon Switch Diode

Product Details

Quick Details

Product :	Standard Recovery Rectifiers	Configuration :	Dual Series
Reverse Voltage :	30 V	Forward Voltage Drop :	1.1 V
Recovery Time :	0.7 ns	Forward Continuous Current :	0.05 A
Max Surge Current :	0.25 A	Reverse Current IR :	0.05 uA at 20 V
Mounting Style :	SMD/SMT	Package / Case :	SOT-23
Packaging :	Reel

Description

Forward Voltage Drop : 1.1 V
Mounting Style : SMD/SMT
Packaging : Reel
Product : Standard Recovery Rectifiers
Reverse Voltage : 30 V
Package / Case : SOT-23
Configuration : Dual Series
Recovery Time : 0.7 ns
Forward Continuous Current : 0.05 A
Max Surge Current : 0.25 A
Reverse Current IR : 0.05 uA at 20 V

Parameters:

Technical/Catalog Information	MMBD1703
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Standard
Diode Configuration	1 Pair Series Connection
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	50mA
Voltage - Forward (Vf) (Max) @ If	1.1V @ 50mA
Current - Reverse Leakage @ Vr	50nA @ 20V
Reverse Recovery Time (trr)	1ns
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Surface Mount
Package / Case	SOT-23
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MMBD1703 MMBD1703
