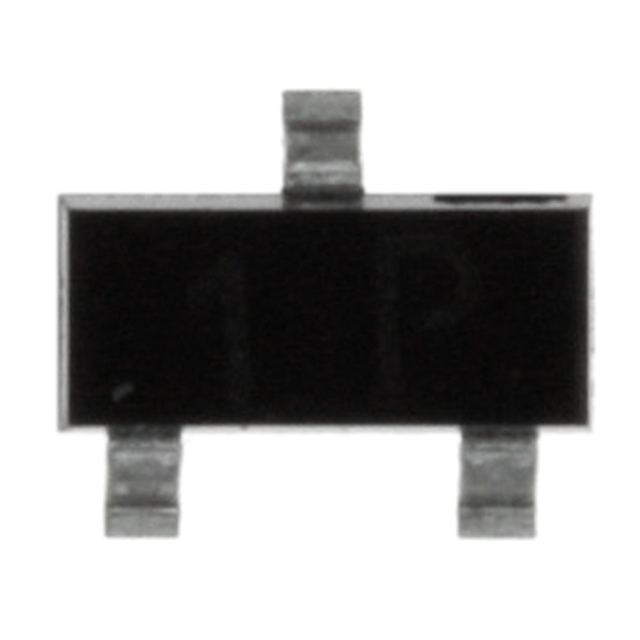

MMBT2222ATT3G Product Image

MMB Series Datasheet download

Five Points

Part Number: MMBT2222ATT3G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor





Descriptions: TRANS NPN GP 75V 600MA SC75-3

Price Break

40000

Unit Price

.01909

Extended Price

763.60

(All prices are in USD) Prices for reference only
Urgent Purchase

MMBT2222ATT3G General Description

TRANS NPN GP 75V 600MA SC75-3

MMBT2222ATT3G Parameters

Technical/Catalog InformationMMBT2222ATT3G
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)40V
Current - Collector (Ic) (Max)600mA
Power - Max150mW
DC Current Gain (hFE) (Min) @ Ic, Vce35 @ 100A, 10V
Vce Saturation (Max) @ Ib, Ic300mV @ 15mA, 150mA
Frequency - Transition300MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseSC-75-3, SOT-416, EMT3
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
