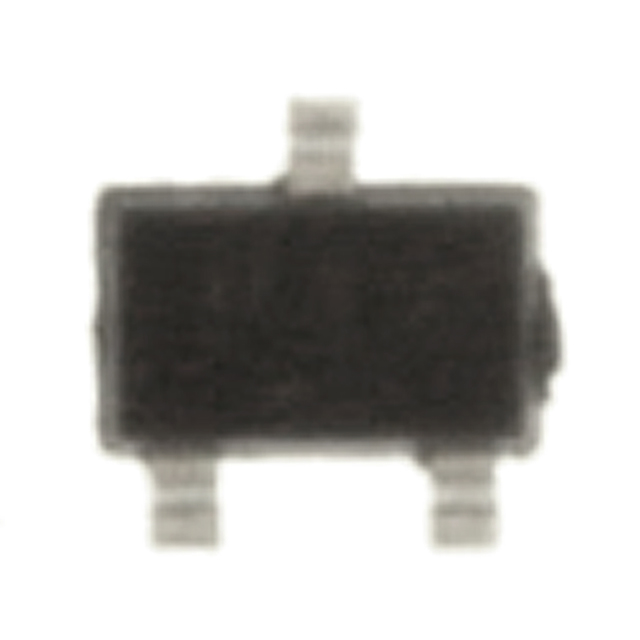

See larger image

SeekIC No. : 00214000 Detail

MMBT2222LT1: Transistors Bipolar (BJT) 600mA 75V NPN

MMBT2222LT1 Data Sheet

Get Latest Price

Part Number:: MMBT2222LT1
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMBT 2222A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.6A
MMBT 2907A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT PNP 60V 0.6A
MMBT 3904 LT1 evaluate
US $.03 - .08 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.2A

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	30 V
Emitter- Base Voltage VEBO :	5 V	Maximum DC Collector Current :	0.6 A
DC Collector/Base Gain hfe Min :	35 at 0.1 mA at 10 V	Configuration :	Single
Maximum Operating Frequency :	250 MHz (Min)	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-23
Packaging :	Reel

Description

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Emitter- Base Voltage VEBO : 5 V
Package / Case : SOT-23
Collector- Emitter Voltage VCEO Max : 30 V
Maximum DC Collector Current : 0.6 A
DC Collector/Base Gain hfe Min : 35 at 0.1 mA at 10 V
Maximum Operating Frequency : 250 MHz (Min)

Specifications

Rating	Symbol	2222	2222A	UNIT
Colleoctor-Emitter Voltage	V_CEO	30	40	Vdc
Colleoctor-Base Voltage	V_CBO	60	75	Vdc
Emitter-Base Voltage	V_EBO	5.0	6.0	Vdc
Colleoctor Current-Continuous	I_C	600	600	madc

Parameters:

Technical/Catalog Information	MMBT2222LT1
Vendor	ON Semiconductor (VA)
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	600mA
Power - Max	225mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V
Vce Saturation (Max) @ Ib, Ic	400mV @ 15mA, 150mA
Frequency - Transition	250MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	SOT-23-3, TO-236-3, Micro3?, SSD3, SST3
Packaging	Cut Tape (CT)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MMBT2222LT1 MMBT2222LT1 MMBT2222LT1OSCT ND MMBT2222LT1OSCTND MMBT2222LT1OSCT
