MMBT6427, US $ .04-.07 , Fairchild Semiconductor, MMBT6427 DataSheet download, circuit diagram from SeekIC.com

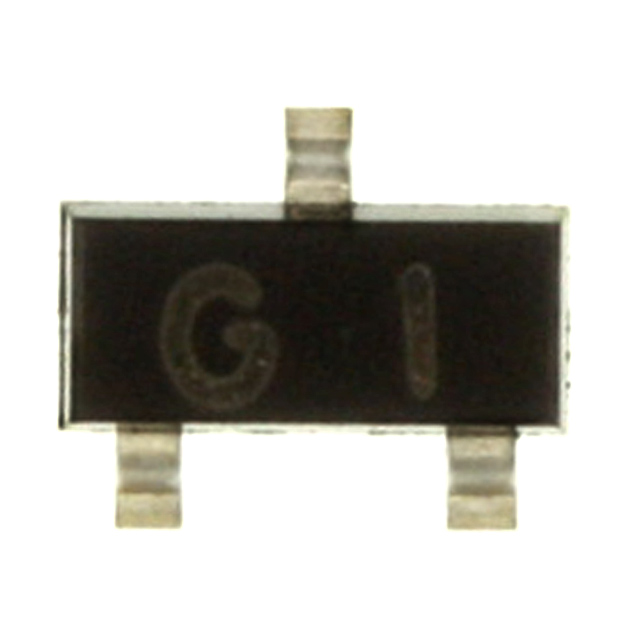

See larger image

SeekIC No. : 00216862 Detail

MMBT6427: Transistors Darlington NPN Transistor Darlington

MMBT6427 Data Sheet

US $ .04~.07 / Piece | Get Latest Price

Part Number:: MMBT6427
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.07
$.06
$.05
$.04

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMBT 2222A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.6A
MMBT 2907A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT PNP 60V 0.6A
MMBT 3904 LT1 evaluate
US $.03 - .08 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.2A

Product Details

Quick Details

Configuration :	Single	Transistor Polarity :	NPN
Collector- Emitter Voltage VCEO Max :	40 V	Emitter- Base Voltage VEBO :	12 V
Collector- Base Voltage VCBO :	40 V	Maximum DC Collector Current :	1.2 A
Maximum Collector Cut-off Current :	0.05 uA	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-23
Packaging :	Reel

Description

Power Dissipation :
Transistor Polarity : NPN
Mounting Style : SMD/SMT
Packaging : Reel
Configuration : Single
Maximum Operating Temperature : + 150 C
Collector- Base Voltage VCBO : 40 V
Package / Case : SOT-23
Maximum DC Collector Current : 1.2 A
Emitter- Base Voltage VEBO : 12 V
Maximum Collector Cut-off Current : 0.05 uA
Collector- Emitter Voltage VCEO Max : 40 V

Features:

· Epitaxial Planar Die Construction
· Ideal for Low Power Amplification and Switching
· High Current Gain
· Lead Free/RoHS Compliant (Note 1)

Specifications

Characteristic	Symbol	Value	Unit
Collector-Base Voltage	V_CBO	40	V
Collector-Emitter Voltage	V_CEO	40	V
Emitter-Base Voltage	V_EBO	12	V
Collector Current - Continuous	I_C	500	mA

Parameters:

Technical/Catalog Information	MMBT6427
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Transistor Type	NPN - Darlington
Voltage - Collector Emitter Breakdown (Max)	40V
Current - Collector (Ic) (Max)	1.2A
Power - Max	350mW
DC Current Gain (hFE) (Min) @ Ic, Vce	10000 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic	1.2V @ 500A, 50mA
Frequency - Transition	-
Current - Collector Cutoff (Max)	1A
Mounting Type	Surface Mount
Package / Case	SOT-23
Packaging	Cut Tape (CT)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MMBT6427 MMBT6427 MMBT6427FSCT ND MMBT6427FSCTND MMBT6427FSCT
