Purchase MMBTA43, In-stock MMBTA43 From SeekIC.

MFG:TDK  Package Cooled:50000  D/C:09+

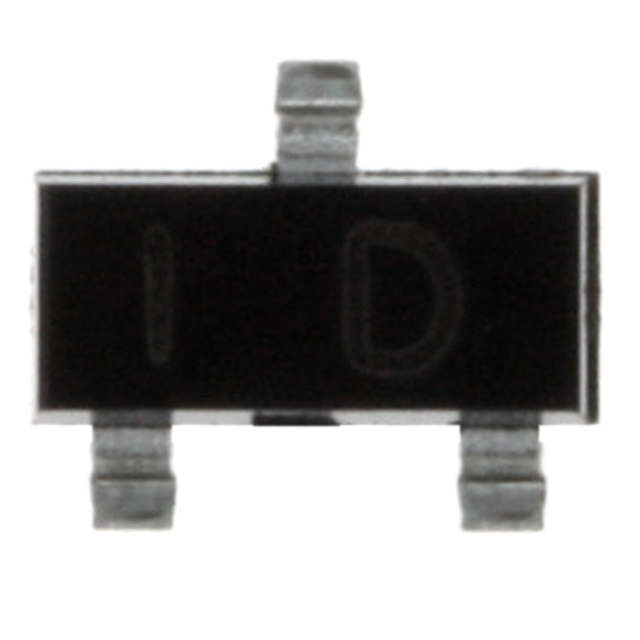

MMBTA43 Product Image

MMB Series Datasheet download

Five Points

Part Number: MMBTA43



MFG: TDK

Package Cooled: 50000

D/C: 09+



Urgent Purchase

MMBTA43 Maximum Ratings

Parameter
Symbol
Rating
Unit
Collector-emitter voltage
Collector-base voltage
Emitter-base voltage
Collector current-continuous
Total device dissipation FR-5 board *1 @TA = 25
Derate above 25
Thermal resistance, junction-to-ambient
Total device dissipation alumina substrate *2 @TA = 25
derate above 25
Thermal resistance, junction-to-ambient
Junction and storage temperature

VCEO
VCBO
VEBO
IC
PD
RJA

PD

RJA
TJ, Tstg
200
200
6
500
225
1.8
556
300
2.4
417
-55 to +150
V
V
V
mA
mW
mW/
/W
mW
mW/
/W
* 1. FR-5 = 1.0 X 0.75 X 0.062 in.
* 2. Alumina = 0.4 X 0.3 X 0.024 in. 99.5% alumina.

MMBTA43 Features

NPN Silicon
