MMBTA92

Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : PNP
Emitter- Base Voltage VEBO : 5 V
Package / Case : SOT-23
Maximum DC Collector Current : 0.5 A
Maximum Operating Frequency : 50 MHz (Min)
Collector- Emitter Voltage VCEO Max : 300 V
DC Collector/Base Gain hfe Min : 40


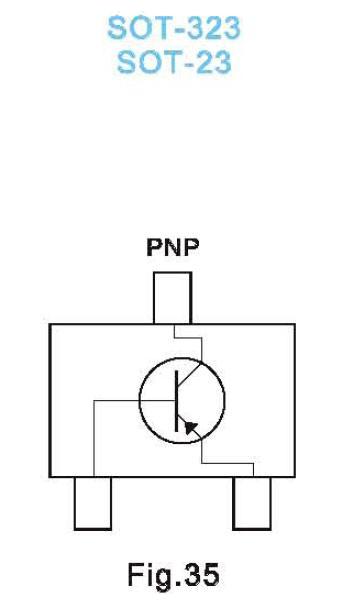

Pinout






Specifications

Symbol	Parameter	Value	Units
VCES	Collector-Emitter Voltage	300	V
VCBO	Collector-Base Voltage	300	V
VEBO	Emitter-Base Voltage	5.0	V
IC	Collector Current - Continuous	500	mA
TJ, Tstg	Operating and Storage Junction Temperature Range	-55 to +150

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Part Number	MMBTA92
Product Type	PNP
VCEO (V)	-300
IC (A)	-0.5
ICM (A)	-
PD (W)	0.3
hFE Min	25
hFE Max	-
@ IC (A)	-0.03
VCE (SAT) Max (mV)	-500
@ IC (A)	-0.02
@ IB (mA)	-2
fT Min (MHz)	50
RCE (SAT) (m)	-

Parameters:

Technical/Catalog Information	MMBTA92
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	300V
Current - Collector (Ic) (Max)	500mA
Power - Max	350mW
DC Current Gain (hFE) (Min) @ Ic, Vce	25 @ 1mA, 10V
Vce Saturation (Max) @ Ib, Ic	500mV @ 2mA, 20mA
Frequency - Transition	50MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	SOT-23-3
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
