Part Number: MN55720
Description: The MN55720 is a high-quality character generator IC that rapidly generates multilevel grayscale data ...
- Table of contents:
MN55720
-
Suppliers
DataSheet
General Description
MN55720 General Description
The MN55720 is a high-quality character generator IC that rapidly generates multilevel grayscale data from outline (path) data for characters and similar images. This IC includes input and output FIFO memory units to assure highspeed processing, and provides a local interface (16 or 32 bits) to allow the use of this IC in a wide range of equipment.
MN55720 Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
|
External supply voltage * |
VDD |
- 0.3 to +4.6 |
V |
|
Internal supply voltage * |
VDDI |
- 0.3 to +4.6 |
V |
|
Input pin voltage |
VI |
- 0.3 to VDD+0.3 (Upper limit: 4.6 V) |
V |
|
Output pin voltage |
VO |
- 0.3 to VDD+0.3 (Upper limit: 4.6 V) |
V |
|
Output current (Type HL4 pins) |
VO |
±12 |
mA |
|
Output current (Type HL8 pins) |
IO |
±24 |
mA |
|
Power supply input current |
IV |
±70 (Per pin) |
mA |
|
Power dissipation |
PD |
T.B.D. |
mW |
|
Operating temperature |
Topr |
-10 to +70 |
°C |
|
Storage temperature |
Tstg |
-55 to +125 |
°C |
2. Type HL4 pins: IRQ and CLOCK
Type HL8 pins: D0 to D31
3. The absolute maximum ratings are limit values for stresses applied to the chip so that the chip will not be destroyed.
Operation is not guaranteed within these ranges.
4. All the VDD and VSS pins must be connected to the external corresponding power supply or ground.
MN55720 Features
· Gray scale levels: Can be set to any level from 2 to 128 levels.
· Bit sizes: Can generate characters of any size.
· Interface specifications: Local bus (Supports both 16-bit and 32-bit busses.)
· Operating frequency: 50 MHz to 70 MHz
· Operating supply voltage: External supply: 3.3 V±0.3 V
Internal supply: 2.5 V±0.2 V
· Package: 80 pin TQFP (12 mm × 12 mm)
· Bit sizes: Can generate characters of any size.
· Interface specifications: Local bus (Supports both 16-bit and 32-bit busses.)
· Operating frequency: 50 MHz to 70 MHz
· Operating supply voltage: External supply: 3.3 V±0.3 V
Internal supply: 2.5 V±0.2 V
· Package: 80 pin TQFP (12 mm × 12 mm)
MN55720 Typical Application
· STB and DTV

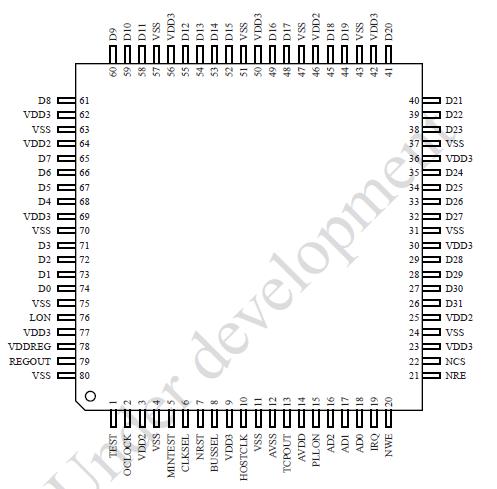

MN55720 Connection Diagram
MN55720
PDF/DataSheet Download
- Datasheet: MN55720
- File Size: 222237 KB
- Manufacturer: panasonic
- Click here to Download
