Part Number: MN6570F
Description: The MN6570F, MN6570TF, and MN6570EF are highspeed 8-bit, 3-channel CMOS digital-to-analog converters w...
- Table of contents:
MN6570F
-
Suppliers
DataSheet
General Description
MN6570F General Description
The MN6570F, MN6570TF, and MN6570EF are highspeed 8-bit, 3-channel CMOS digital-to-analog converters with maximum conversion rates of 35 MSPS, 40 MSPS, and 40 MSPS, respectively.
They use both a matrix cell and weighted current technology.
The three channels use separate clock signals, so they may be used as totally independent D/A converters.
MN6570F Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Power supply voltage for digital circuits | DVDD | 0.3 to +7.0 | V |
| Power supply voltage for analog circuits | AVDD | 0.3 to +7.0 | V |
| Input voltage | VI | DVSS 0.3 to DVDD +0.3 | V |
| Output voltage | VO | AVSS 0.3 to AVDD +0.3 | V |
| Operating ambient temperature | Topr | 20 to +70 *1/20 to +75 *2/30 to 85 *3 | °C |
| Storage temperature | Tstg | 55 to +125 | °C |
MN6570F Features
·Maximum conversion rate:
MN6570F: 35MSPS (min.)
MN6570TF and MN6570EF: 40 MSPS (min.)
·Linearity error: ±0.2 LSB (typ.)
·Differential linearity error: ±0.2 LSB (typ.)
·Power supply voltage: VCC= 5.0±0.5 V
·Power consumption:
MN6570F: 340 mW (typ.)
MN6570TF and MN6570EF: 190 mW (typ.)
·Full scale current:
MN6570F: 13 mA (typ.)
MN6570TF and MN6570EF: 5 mA (typ.)
MN6570F: 35MSPS (min.)
MN6570TF and MN6570EF: 40 MSPS (min.)
·Linearity error: ±0.2 LSB (typ.)
·Differential linearity error: ±0.2 LSB (typ.)
·Power supply voltage: VCC= 5.0±0.5 V
·Power consumption:
MN6570F: 340 mW (typ.)
MN6570TF and MN6570EF: 190 mW (typ.)
·Full scale current:
MN6570F: 13 mA (typ.)
MN6570TF and MN6570EF: 5 mA (typ.)
MN6570F Typical Application
·Digital television
·Digital video equipment
·Digital image processing equipment
·Digital video equipment
·Digital image processing equipment

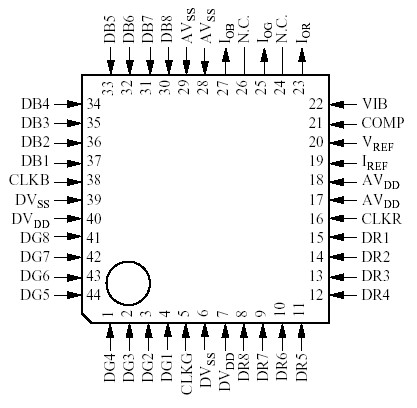

MN6570F Connection Diagram
MN6570F
