Part Number: MN65742



MFG: PANSONIC

Package Cooled: 02

D/C: 238

Description: The MN65742 is a 6-bit, 2-channel CMOS analog-todigital converter. It uses a totally parallel structur...


Urgent Purchase

MN65742 General Description


The MN65742 is a 6-bit, 2-channel CMOS analog-todigital converter. It uses a totally parallel structure based on differential comparators to achieve high-speed operation.

MN65742 Maximum Ratings

Parameter Symbol Rating Unit
Power supply voltage AVDD 0.3 to +7.0 V
Power supply voltage for output circuits AVDDL 0.3 to AVDD +0.3 V
Input voltage VI 0.3 to AVDD +0.3 V
Output voltage VO 0.3 to AVDD +0.3 V
Operating ambient temperature Topr 20 to +70 °C
Storage temperature Tstg 55 to +125 °C

MN65742 Features

·Resolution: 6 bits
·Maximum conversion rate: 60 MSPS (min.)
·Linearity error: ±1.3 LSB (typ.)
·Differential linearity error: ±1.3 LSB (typ.)
·Analog input voltage level: 1.5 Vp-p (typ.) (1.0 to 2.5 V)
·Power supply voltage: 5.0 ±0.25 V 3.0 to 5.25 V (power supply for output pins)
·Power consumption: 250 mW (typ.) (FC= 60 MSPS, not including reference current)

MN65742 Typical Application

·Digital satellite broadcasting receivers
·Digital video equipment
·Multimedia equipment
·Communications equipment

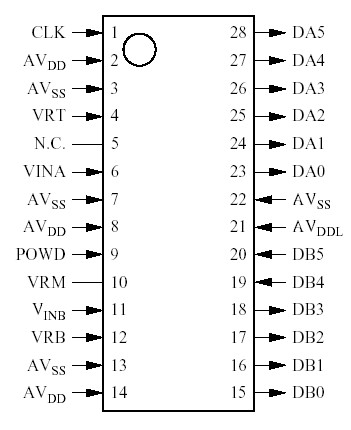

MN65742 Connection Diagram

MN65742 Connection Diagram

MN65742 datasheet

MN65742
PDF/DataSheet Download

  • Datasheet: MN65742
  • File Size: 51920 KB
  • Manufacturer: PANASONIC [Panasonic Semiconductor]
  • Click here to Download
