Purchase MN6576H, In-stock MN6576H From SeekIC.
Part Number: MN6576H
Description: The MN6576H is a high-speed 9-bit CMOS analog-todigital converter for image processing applications.It uses a h...
- Table of contents:
MN6576H
-
Suppliers
DataSheet
General Description
MN6576H General Description
The MN6576H is a high-speed 9-bit CMOS analog-todigital converter for image processing applications.
It uses a half flash structure based on chopper comparators and achieves both high speed and low power consumption with multiplexing.
It provides separate power supply pins for the circuits driving the low-voltage digital output pins.
MN6576H Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Power supply voltage | VDD | 0.3 to +7.0 | V |
| Power supply voltage for digital output circuits | DVDDL | 0.3 to VDD +0.3 | V |
| Input voltage | VI | 0.3 to VDD +0.3 | V |
| Output voltage | VO | 0.3 to VDD +0.3 | V |
| Operating ambient temperature | Topr | 20 to +70 | °C |
| Storage temperature | Tstg | 55 to +125 | °C |
MN6576H Features
·Maximum conversion rate: 16 MSPS (min.)
·Linearity error: ±2.5 LSB (typ.)
·Differential linearity error: ±0.6 LSB (typ.)
·Power supply voltage: 5.0 V or 3.3 V
·Power consumption: 120 mW (typ.) (fCLK=16 MHz)
·Linearity error: ±2.5 LSB (typ.)
·Differential linearity error: ±0.6 LSB (typ.)
·Power supply voltage: 5.0 V or 3.3 V
·Power consumption: 120 mW (typ.) (fCLK=16 MHz)
MN6576H Typical Application
·Digital television receivers
·Digital video equipment
·Digital image processing equipment
·Digital video equipment
·Digital image processing equipment

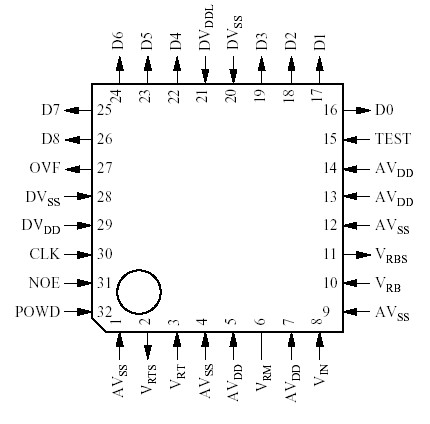

MN6576H Connection Diagram
MN6576H
PDF/DataSheet Download
- Datasheet: MN6576H
- File Size: 59017 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
