Part Number: MN65771F





Package Cooled: 5

D/C: QFP

Description: The MN65771F is a high-speed 10-bit CMOS analogto-digital converter for image processing applications.It uses a...


Urgent Purchase

MN65771F General Description


The MN65771F is a high-speed 10-bit CMOS analogto-digital converter for image processing applications.

It uses a half flash structure based on chopper comparators  to achieve both high speed and low power consumption.

MN65771F Maximum Ratings

Parameter Symbol Rating Unit
Power supply voltage VDD 0.3 to +7.0 V
Input voltage VI 0.3 to VDD +0.3 V
Output voltage VO 0.3 to VDD +0.3 V
Operating ambient temperature Topr 20 to +70 °C
Storage temperature Tstg 55 to +125 °C

MN65771F Features

·Maximum conversion rate: 18 MSPS (min.)
·Linearity error: ±1.3 LSB (typ.)
·Differential linearity error: ±1.0 LSB (typ.)
·Power supply voltage: 5.0 V or 3.3 V
·Power consumption: 115 mW (typ.) (fCLK=20 MHz)

MN65771F Typical Application

·Digital television receivers
·Digital video equipment
·Digital image processing equipment

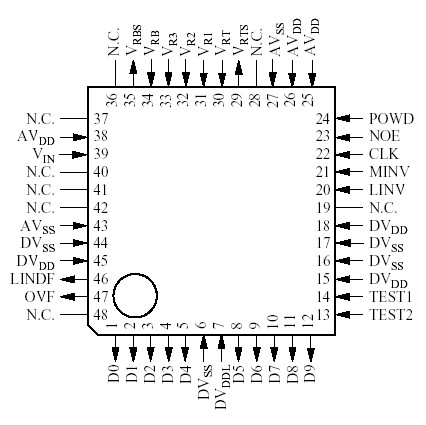

MN65771F Connection Diagram

MN65771F Connection Diagram

MN65771F datasheet

MN65771F
PDF/DataSheet Download

  • Datasheet: MN65771F
  • File Size: 61873 KB
  • Manufacturer: PANASONIC [Panasonic Semiconductor]
  • Click here to Download
