Part Number: MN6577H
Package Cooled: QFP
D/C: 0
Description: The MN6577F and MN6577H are high-speed 10-bit CMOS analog-to-digital converters for image processing a...
- Table of contents:
MN6577H
-
Suppliers
DataSheet
General Description
MN6577H General Description
The MN6577F and MN6577H are high-speed 10-bit CMOS analog-to-digital converters for image processing applications.
They use a half flash structure based on chopper comparators to achieve both high speed and low power consumption, and operate on a single 3 volt power supply.
MN6577H Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Power supply voltage | VDD | 0.3 to +7.0 | V |
| Input voltage | VI | 0.3 to VDD +0.3 | V |
| Output voltage | VO | 0.3 to VDD +0.3 | V |
| Operating ambient temperature | Topr | 20 to +70 | °C |
| Storage temperature | Tstg | 55 to +125 | °C |
MN6577H Features
·Maximum conversion rate: 15 MSPS (min.)
·Linearity error: ±1.3 LSB (typ.)
·Differential linearity error: ±0.5 LSB (typ.)
·Power supply voltage: 3.0 V
·Power consumption: 40 mW (typ.) (fCLK=15 MHz)
·Linearity error: ±1.3 LSB (typ.)
·Differential linearity error: ±0.5 LSB (typ.)
·Power supply voltage: 3.0 V
·Power consumption: 40 mW (typ.) (fCLK=15 MHz)
MN6577H Typical Application
·Digital television
·Digital video equipment
·Digital image processing equipment
·Digital video equipment
·Digital image processing equipment

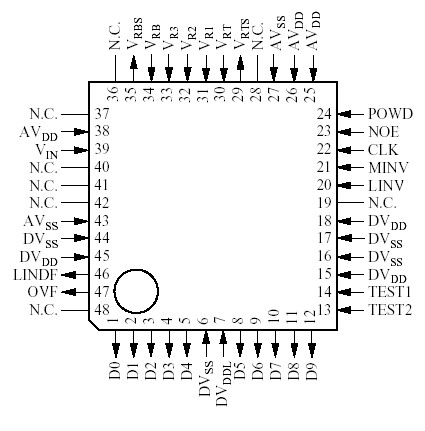

MN6577H Connection Diagram
