MN66621BRG
-
Suppliers
DataSheet
General Description
MN66621BRG Maximum Ratings
|
Item |
Symbol |
Rating |
Unit |
|
I/O digital system supply voltage |
IVDD |
- 0.3 to +4.6 |
V |
|
Internal digital system supply voltage |
DVDD |
- 0.3 to +2.5 |
V |
|
Analog system supply voltage |
AVDD |
- 0.3 to +4.6 |
V |
|
Digital input pin voltage |
VI |
- 0.3 to IVDD+0.3 (Maximum: 4.6) |
V |
|
Digital output pin voltage |
VO |
- 0.3 to IVDD+0.3 (Maximum: 4.6) |
V |
|
Analog input pin voltage |
VIA |
- 0.3 to AVDD+0.3 (Maximum: 4.6) |
V |
|
Analog output pin voltage |
VOA |
- 0.3 to AVDD+0.3 (Maximum: 4.6) |
V |
|
Output current (HL4 type pins) |
IO |
±12 |
mA |
|
Output current (HL8 type pins) |
IO |
±24 |
mA |
|
Power dissipation |
PD |
700 |
mW |
|
Operating temperature |
Topr |
-10 to +70 |
°C |
|
Storage temperature |
Tstg |
-55 to +125 |
°C |
2. All of the IVDD, DVDD, AVDD, VSS, and AVSS pins must be connected externally and the corresponding power or ground level supplied.
3. Insert bypass capacitors between the IVDD and VSS pins, the DVDD and VSS pins, and the AVDD and VSS pins.
4. Connect the TS0 to TS3 pins to VSS.
5. IVDD pins: IVDD0, IVDD1 DVDD pins: DVDD0, DVV1, DVDD2
AVDD pins: AVDD0, AVDD1, ADACVDD VSS pins: DVSS0, DVSS1, DVSS2
AVSS pins: AVSS0, AVSS1, ADACVSS
Analog input pins: PEAK, BTOM, OSC, MON3T, VREFI, FF2, FF1, DD, CC, BB, AA, PEFMS, EFMIREF, ADIP
Analog output pins: ADACL, ADACR, PEMF1, EFMFIL, EFMPLLF
HL4 type pins: APCD, RFSWPG, RFSWHL, CLV2, REFM, SPDM, SPDP, FODM, FODP, TRDM, TRDP, LDON,
TVDM, TVDP, SBCK, NREC, SDAP, SWS, SCL, TX, SGSYNC, MIDSY, SCTSY, SSDR, MONI1,
MONI2, MONI3, MONI0, NWE
HL8 type pins: FS384, RAD11 to RAD0, RDT3 to RDT0, NRAS, NCAS
MN66621BRG Features
` MDLP encoding/decoding support (LP2/LP4)
` ATRAC encoding/decoding support (stereo and mono)
` High-speed recording support (4* speed for all of the ATRAC, LP2, and LP4 modes)
` High-fidelity encoding algorithms (ATRAC/LP2/LP4)
` Uses a 24-bit digital signal processor (DSP)
` Digital volume control with 10-bit smooth fade function
(Playback: - dB to +18 dB, common left and right setting. Record: - dB to +18 dB, independent left and right settings.)
` Peak level detection function
` Silent segment detection function
` Bass and treble boost functions
` Low headphone sound leakage position (ASC)
` Digital audio interface (IEC 958 conformant)
` On-chip CD IC interface (audio and subcode data)
` ATRAC encoding/decoding support (stereo and mono)
` High-speed recording support (4* speed for all of the ATRAC, LP2, and LP4 modes)
` High-fidelity encoding algorithms (ATRAC/LP2/LP4)
` Uses a 24-bit digital signal processor (DSP)
` Digital volume control with 10-bit smooth fade function
(Playback: - dB to +18 dB, common left and right setting. Record: - dB to +18 dB, independent left and right settings.)
` Peak level detection function
` Silent segment detection function
` Bass and treble boost functions
` Low headphone sound leakage position (ASC)
` Digital audio interface (IEC 958 conformant)
` On-chip CD IC interface (audio and subcode data)
MN66621BRG Typical Application
· MD players and MD recorders

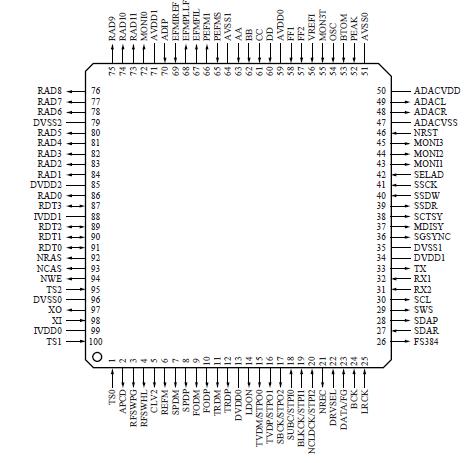

MN66621BRG Connection Diagram
MN66621BRG
