MOC70P3 General Description


The MOC70PX consists of an infrared light emitting diode coupled to an NPN silicon phototransistor packaged into an injection molded housing. The housing is designed for wide gap, non contact sensing.

MOC70P3 Maximum Ratings

Parameter
Symbol
Rating
Units
Operating Temperature
TOPR
-55 to +100
Storage Temperature
TSTG
-55 to +100
Soldering Temperature (Iron)(2,3,4,5)
TSOL-I
240 for 5 sec
Soldering Temperature (Flow)(2,3,5)
TSOL-F
260 for 10 sec
EMITTER
Continuous Forward Current
IF
50
mA
Reverse Voltage
VR
6
V
Power Dissipation(1)
PD
100
mW
SENSOR
Collector-Emitter Voltage
VCEO
30
V
Emitter-Collector Voltage
VECO
4.5
V
Collector Current
IC
20
mA
Power Dissipation(1)
PD
150
mW

MOC70P3 Features

• No contact sensing
• 5 mm gap
• .040" aperture
• Low profile
• PCB mount
• Transistor output

MOC70P3 datasheet

MOC70P3
PDF/DataSheet Download

  • Datasheet: MOC70P3
  • File Size: 82722 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download

Find MOC70P3 Suppliers

  • ·MOC119
  • MOTOROLA [Motorola, Inc]
  • 6-Pin DIP Optoisolator Darlington Output(No Base Connection)
  • 91095 KB
  • MOC119 Datasheet Download
  • ·MOC205
  • FAIRCHILD [Fairchild Semiconductor]
  • SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT
  • 121669 KB
  • MOC205 Datasheet Download
  • ·MOC205-M
  • FAIRCHILD [Fairchild Semiconductor]
  • SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT
  • 532988 KB
  • MOC205-M Datasheet Download
  • ·MOC206
  • MOTOROLA [Motorola, Inc]
  • SMALL OUTLINE OPTOISOLATORS TRANSISTOR OUTPUT
  • 121669 KB
  • MOC206 Datasheet Download
  • ·MOC206-M
  • FAIRCHILD [Fairchild Semiconductor]
  • SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT
  • 532988 KB
  • MOC206-M Datasheet Download
  • ·MOC207
  • MOTOROLA [Motorola, Inc]
  • SMALL OUTLINE OPTOISOLATORS TRANSISTOR OUTPUT
  • 121669 KB
  • MOC207 Datasheet Download
  • ·MOC207-M
  • FAIRCHILD [Fairchild Semiconductor]
  • SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT
  • 532988 KB
  • MOC207-M Datasheet Download
  • ·MOC208
  • MOTOROLA [Motorola, Inc]
  • SMALL OUTLINE OPTOISOLATORS TRANSISTOR OUTPUT
  • 121669 KB
  • MOC208 Datasheet Download

Related Part Number

MOC70P3 Relative Products

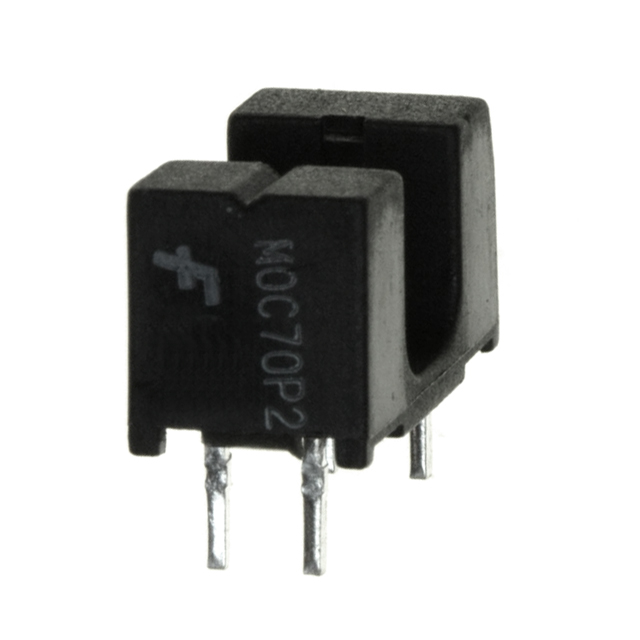

  • MOC70P2
