MFG:FSC Package Cooled:DIP-W, SMDIP-W D/C:08+
MFG: FSC
Package Cooled: DIP-W, SMDIP-W
D/C: 08+
Description: The MOC8100, TIL111 and TIL117 optocouplers consist of a gallium arsenide infrared emitting diode driv...
The MOC8100, TIL111 and TIL117 optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.
| Parameter |
Device |
Symbol |
Value |
Units |
| TOTAL DEVICE Storage Temperature |
All |
TSTG |
-55 to +150 |
|
| Operating Temperature |
All |
TOPR |
-55 to +100 |
|
| Lead Solder Temperature |
All |
TSOL |
260 for 10 sec |
|
| Total Device Power Dissipation @ TA= 25°C Derate above 25°C |
All |
PD |
250 |
mW |
|
3.3 (non-M) 2.94 (-M) |
mW/ | |||
| EMITTER DC/Average Forward Input Current |
All |
IF |
100 (non-M), 60 (-M) |
mA |
| Reverse Input Voltage |
TIL111/TIL111-M |
VR |
3 |
V |
|
MOC8100-M/TIL117-M |
6 | |||
| Forward Current - Peak (300µs, 2% Duty Cycle) |
All |
IF(pk) |
3 |
A |
| LED Power Dissipation @ TA = 25 °C Derate above 25°C |
All |
PD |
150 (non-M), 120 (-M) |
mW mW/ |
|
2.0 (non-M), 1.41 (-M) | ||||
| DETECTOR Collector-Emitter Voltage |
All |
VCEO |
30 |
V |
| Collector-Base Voltage |
All |
VCBO |
70 |
V |
| Emitter-Collector Voltage |
TIL111-M/TIL117-M |
VECO |
7 |
V |
| Emitter-Base Voltage |
All |
VEBO |
7 | |
| Detector Power Dissipation @ TA= 25 °C Derate above 25°C |
All |
PD |
150 |
mW |
|
2.0 (non-M), 1.76 (-M) |
mW/ |
• The TIL111 is also available in both black and white packages by specifying -M suffix, e.g. TIL111-M for the white package and no suffix for the black package.
• UL recognized (File # E90700)
• VDE recognized (File # 94766); (File #102497 for white package)
- Add option V for white package (e.g., TIL111V-M)
- Add option 300 for black package (e.g., TIL111.300)
MOC8100-M
PDF/DataSheet Download
OPTOCOUPLER TRANS-OUT 6-DIP
The MOC8100 optically coupled isolator consists of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line plastic package.

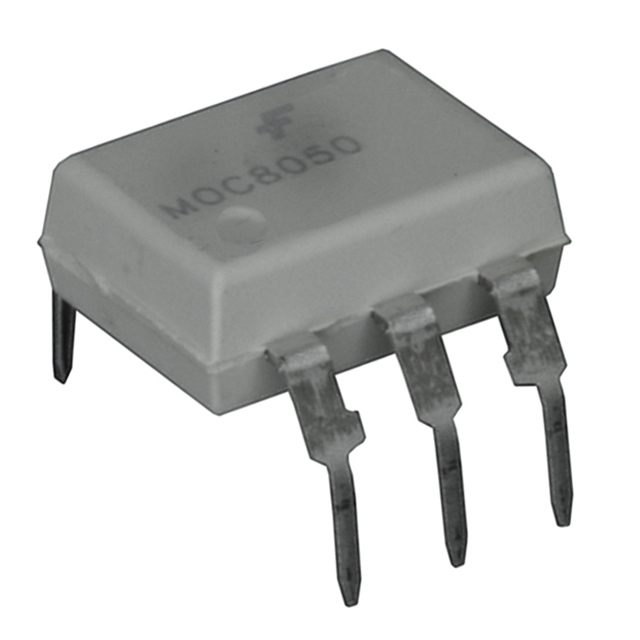

The CNX48U, H11BX, MOC8080 and TIL113 have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

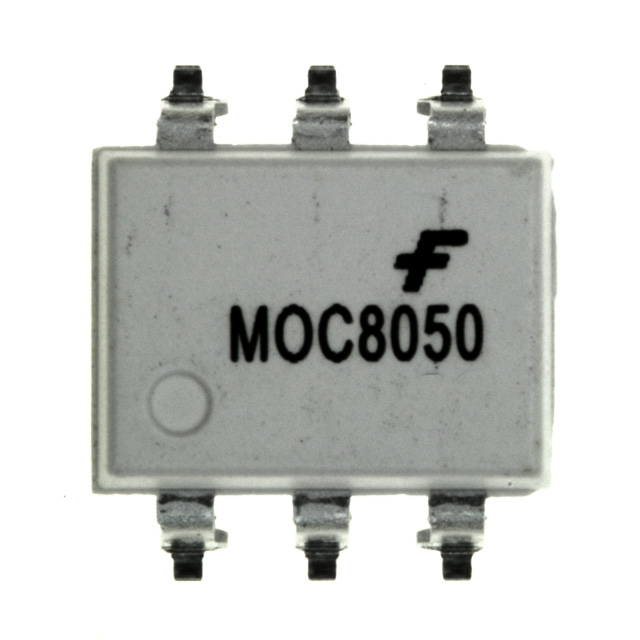

OPTOCOUPLER PHOTODARL 6SMD
OPTOCOUPLER PHOTODARL 6-SMD
OPTOCOUPLER PHOTODARL 6SMD
