MOC8113 General Description


The MOC8111, MOC8112 and MOC8113 devices consist of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon phototransistor detector. The internal basetoPin 6 connection has been eliminated for improved noise immunity.

MOC8113 Maximum Ratings

Rating Symbol Value Unit
INPUT LED
Reverse Voltage VR 6 Volts
Forward Current - Continuous IF 60 mA
LED Power Dissipation @ TA = 25°C
    with Negligible Power in Output Detector
Derate above 25°C		 PD


 120

1.41		 mW

mW/°C
OUTPUT TRANSISTOR
CollectorEmitter Voltage VCEO 30 Volts
EmitterCollector Voltage VECO 7 Volts
Collector Current - Continuous IC 150 mA
Detector Power Dissipation @ TA = 25°C
   with Negligible Power in Input LED
Derate above 25°C		 PD


 150

1.76		 mW

mW/°C
TOTAL DEVICE
Isolation Surge Voltage Peak ac Voltage(1), 60 Hz, 1 Second Duration VISO 7500 Vac(pk)
Total Device Power Dissipation @ TA = 25°C
Derate above 25°C		 PD
250
2.94		 mW
mW/°C
Ambient Operating Temperature Range(2) TA 55 to +100 °C
Storage Temperature Range(2) Tstg 55 to +150 °C
Soldering Temperature (10 sec, 1/16, from case) TL 260 °C
1. Isolation surge voltage is an internal device dielectric breakdown rating. For this test, Pins 1 and 2 are common, and Pins 4 and 5 are common.
2. Refer to Quality and Reliability Section in Opto Data Book for information on test conditions.

Preferred devices are Motorola recommended choices for future use and best overall value.GlobalOptoisolator is a trademark of Motorola, Inc.

MOC8113 Typical Application

• Appliances, Measuring Instruments
• Regulation and Feedback Control
• Programmable Controllers
• Interfacing and coupling systems of different potentials and impedances
• General Purpose Switching Circuits
• High Noise Environments

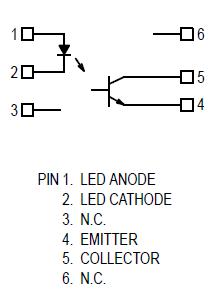

MOC8113 Connection Diagram

MOC8113 Connection Diagram

MOC8113 datasheet

MOC8113
PDF/DataSheet Download

Find MOC8113 Suppliers

  • ·MOC119
  • MOTOROLA [Motorola, Inc]
  • 6-Pin DIP Optoisolator Darlington Output(No Base Connection)
  • 91095 KB
  • MOC119 Datasheet Download
  • ·MOC205
  • FAIRCHILD [Fairchild Semiconductor]
  • SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT
  • 121669 KB
  • MOC205 Datasheet Download
  • ·MOC205-M
  • FAIRCHILD [Fairchild Semiconductor]
  • SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT
  • 532988 KB
  • MOC205-M Datasheet Download
  • ·MOC206
  • MOTOROLA [Motorola, Inc]
  • SMALL OUTLINE OPTOISOLATORS TRANSISTOR OUTPUT
  • 121669 KB
  • MOC206 Datasheet Download
  • ·MOC206-M
  • FAIRCHILD [Fairchild Semiconductor]
  • SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT
  • 532988 KB
  • MOC206-M Datasheet Download
  • ·MOC207
  • MOTOROLA [Motorola, Inc]
  • SMALL OUTLINE OPTOISOLATORS TRANSISTOR OUTPUT
  • 121669 KB
  • MOC207 Datasheet Download
  • ·MOC207-M
  • FAIRCHILD [Fairchild Semiconductor]
  • SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT
  • 532988 KB
  • MOC207-M Datasheet Download
  • ·MOC208
  • MOTOROLA [Motorola, Inc]
  • SMALL OUTLINE OPTOISOLATORS TRANSISTOR OUTPUT
  • 121669 KB
  • MOC208 Datasheet Download

Related Part Number

MOC8113 Relative Products

  • MOC8112M

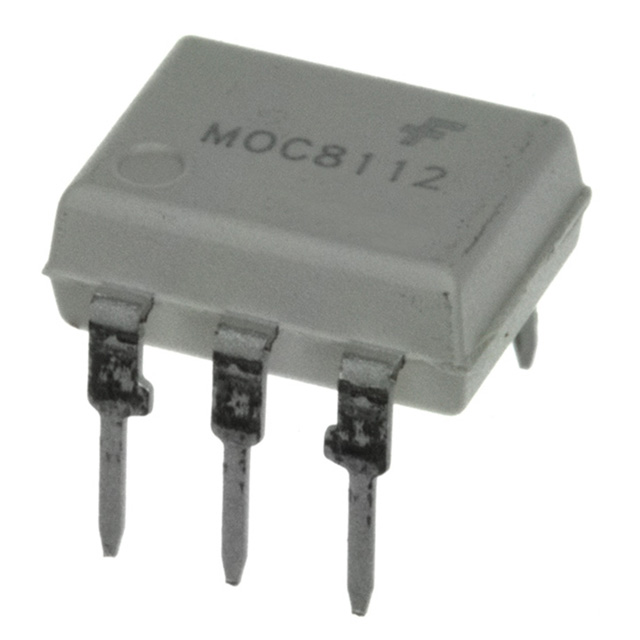

    MOC8112M
