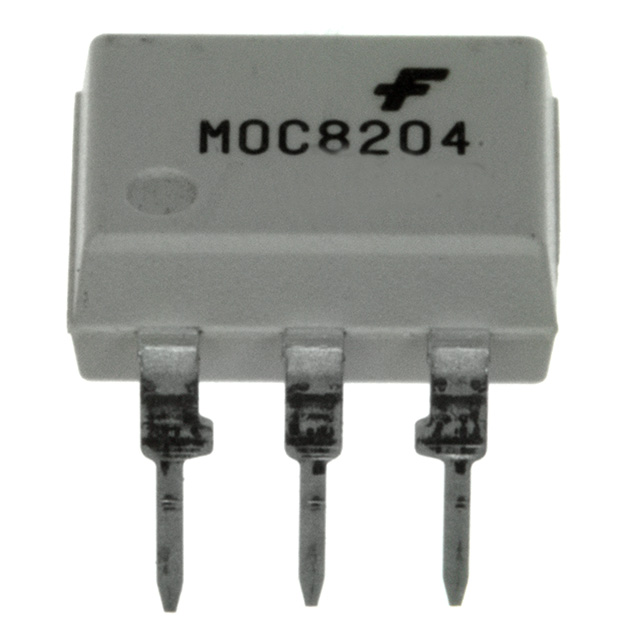

MOC8204SM: Transistor Output Optocouplers Hi Volt Phototrans

MOC8204SM Data Sheet

US $ .38~.55 / Piece | Get Latest Price

Part Number:: MOC8204SM
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.55
$.48
$.45
$.38

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MOC8020 evaluate
Transistor Output Optocouplers DIP-6 HV PHOTO DARL
MOC8020300 evaluate
Transistor Output Optocouplers 6-Pin Optocoupler Photodarlington
MOC8020300W evaluate
Transistor Output Optocouplers 6-Pin Optocoupler Photodarlington

Product Details

Quick Details

Input Type :	DC	Maximum Collector Emitter Voltage :	400 V
Maximum Collector Emitter Saturation Voltage :	0.4 V	Isolation Voltage :	5300 Vrms
Current Transfer Ratio :	20 %	Maximum Forward Diode Voltage :	1.5 V
Maximum Collector Current :	100 mA	Maximum Power Dissipation :	300 mW
Maximum Operating Temperature :	+ 100 C	Minimum Operating Temperature :	- 40 C
Package / Case :	PDIP-6 Gull Wing	Packaging :	Bulk

Description

Maximum Collector Emitter Saturation Voltage : 0.4 V
Maximum Forward Diode Voltage : 1.5 V
Maximum Operating Temperature : + 100 C
Minimum Operating Temperature : - 40 C
Packaging : Bulk
Maximum Power Dissipation : 300 mW
Input Type : DC
Isolation Voltage : 5300 Vrms
Package / Case : PDIP-6 Gull Wing
Maximum Collector Current : 100 mA
Current Transfer Ratio : 20 %
Maximum Collector Emitter Voltage : 400 V

Parameters:

Technical/Catalog Information	MOC8204SM
Vendor	Fairchild Optoelectronics Group
Category	Isolators
Voltage - Isolation	7500Vrms
Input Type	DC
Output Type	Transistor with Base
Current - Output / Channel	-
Voltage - Output	400V
Vce Saturation (Max)	400mV
Current Transfer Ratio (Min)	20% @ 2mA
Mounting Type	Surface Mount
Package / Case	6-SMD
Packaging	Tube
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MOC8204SM MOC8204SM
