Part Number: MP1016
D/C: 02+
Description: The MP1016 is a Power IC that offers a true complete solution optimized for driving a Cold Cathode Flu...
- Table of contents:
MP1016
-
Suppliers
DataSheet
General Description
MP1016 General Description
The MP1016 is a Power IC that offers a true complete solution optimized for driving a Cold Cathode Fluorescent Lamp (CCFL). This Power IC converts unregulated DC voltage to a nearly pure sine wave required to ignite and operate the CCFL. Based on proprietary power topology and control techniques (patented), it greatly increases the
power conversion efficiency. The MP1016 implements precision burst mode dimming without any additional external components. The MP1016 offers four distinct performance advantages:
MP1016 Maximum Ratings
Input Voltage (VBatt) ............................................25V
Power Dissipation.............................................. 1.0W
Logic Inputs............................................ -0.3 to 6.8V
IL, ISFB Input Voltages (VIL, VISFB)................... ± 6V
VLFB Input Voltage (VVLFB)...................... -0.3 to 12V
Junction Temperature....................................... 150
Lead Temperature (Solder) ..............................260
Operating Frequency.................................... 150KHz
Storage Temperature........................ 55 to +150
Recommended Operating Conditions
Input Voltage (VBatt)................................... 6 to 22V
Digital Brightness Voltage (VDBrt)............... 0 to 1.8V
En Enable Voltage (VEn)................................ 0 to 5V
Operating Frequency (Typical)........................ 60KHz
Operating Temperature......................... -20 to +85
Thermal Characteristics JA JC
Thermal Resistance (TSSOP).................. 90° 25/W
Thermal Resistance (TSSOPF).................. 40° 6/W
Power Dissipation.............................................. 1.0W
Logic Inputs............................................ -0.3 to 6.8V
IL, ISFB Input Voltages (VIL, VISFB)................... ± 6V
VLFB Input Voltage (VVLFB)...................... -0.3 to 12V
Junction Temperature....................................... 150
Lead Temperature (Solder) ..............................260
Operating Frequency.................................... 150KHz
Storage Temperature........................ 55 to +150
Recommended Operating Conditions
Input Voltage (VBatt)................................... 6 to 22V
Digital Brightness Voltage (VDBrt)............... 0 to 1.8V
En Enable Voltage (VEn)................................ 0 to 5V
Operating Frequency (Typical)........................ 60KHz
Operating Temperature......................... -20 to +85
Thermal Characteristics JA JC
Thermal Resistance (TSSOP).................. 90° 25/W
Thermal Resistance (TSSOPF).................. 40° 6/W
MP1016 Features
· Built-in Burst Mode Oscillator and Modulator
· Built-in Precision Burst Mode Dimming
· Built-in Open/Short Lamp Protection
· Built-in Dual Mode Fault Timer
· Built-in Soft-on/Soft-off Burst Mode
· Automatic Recovery from ESD Event
· Wide Range 6 to 22V Battery Voltage with Regulated Lamp Current
· Startup at All Voltages and Temperatures Without Additional Components
· Integrated 0.10Ω Power Switches
· Output Short Circuit Protected
· No High Voltage Ballast Capacitor
· Built-in Precision Burst Mode Dimming
· Built-in Open/Short Lamp Protection
· Built-in Dual Mode Fault Timer
· Built-in Soft-on/Soft-off Burst Mode
· Automatic Recovery from ESD Event
· Wide Range 6 to 22V Battery Voltage with Regulated Lamp Current
· Startup at All Voltages and Temperatures Without Additional Components
· Integrated 0.10Ω Power Switches
· Output Short Circuit Protected
· No High Voltage Ballast Capacitor
MP1016 Typical Application
LCD Backlight Inverter for:
· Notebook Computers
· Tablet PCs
· Desktop Systems
· Notebook Computers
· Tablet PCs
· Desktop Systems

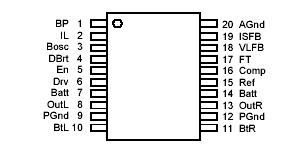

MP1016 Connection Diagram
MP1016
