MP3001

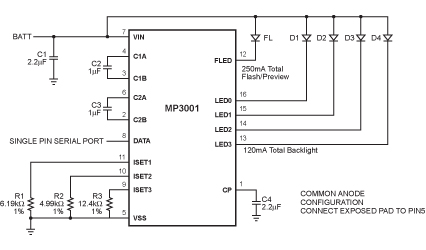

Pinout




Description

The MP3001 is a dual function WLED driver intended for camera phone applications. It can drive up to 4 backlight WLEDs at up to 30mA each and a flash WLED at up to 250mA. Backlight brightness can be adjusted with a 5 bit register plus one bit for precise low brightness control.The MP3001 employs a super efficient inductorless charge pump with 1x, 1.5x and 2x automatic mode control to achieve high efficiency power conversions.Monolithic Power System's single wire MPCTM serial data link provides a simple and fast interface used to enable, disable and set current levels for each LED. In addition, soft start limits the inrush current during startup and mode switching.Each output of MP3001 is current limited, providing controlled brightness and short circuit protection. Thermal shutdown protection guards against excessive loads and shorts.The tiny 3mm x 3mm QFN 16-pin package and small external capacitors deliver the most compact white LED solution available.
