MP7226

V_DD to AGND, DGND . . . . . . . . . . . . . . . . . . . . . .0 to +17 V
Digital Input Voltage to DGND . . . . . . .0.5 to V_DD +0.5 V
V_REF to AGND, DGND . . . . . . . . . . . . . .0.5 to V_DD +0.5 V
V_SS to AGND, DGND . . . . . . . . . . . . . . . . . . . +0.5 to 7 V
A_GND to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±1 V
(Functionality Guaranteed +0.5 V)
Storage Temperature . . . . . . . . . . .65°C to +150°C
Lead Temperature (Soldering, 10 seconds)
Package Power Dissipation Rating to 75°C . . . . .+300°C
PDIP, SOIC, PLCC . . . . . . . . . . . . . . . . . . . . . . . . . .900mW
Derates above 75°C . . . . . . . . . . . . . . . . . . . . .12mW/°C
NOTES:
1 Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation at or above this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
2 Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diode clamps (HP5082-2835) from input pin to the supplies. All inputs have protection diodes which will protect the device from short transients outside the supplies of less than 100mA for less than 100ms.

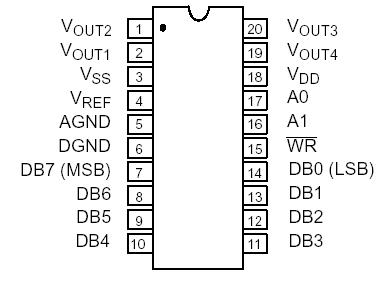

The MP7226 contains four 8-bit voltage-output Digital-to- Analog Converters, with BiCMOS output buffer amplifiers and interface logic on a monolithic chip. Separate on-chip latches are provided for each of the four D/A converters. The control logic of MP7226 is speed compatible with most 8-bit microprocessors. All digital inputs are TTL/CMOS(5V) compatible.

The MP7226 is manufactured using advanced thin film resistors on a double metal BiCMOS process. It incorporates a unique bit decoding technique yielding lower glitch, higher speed and excellent accuracy over temperature and time. The MP7226 maintains 8-Bit accuracy over the full operating temperature range without laser trim or external adjustments.
