General Description
MPC17533 General Description
MPC17533 is a monolithic type SMOS5AP SMARTMOS IC built in 2 channel H-Bridge Driver constituted LDMOSFET, input section can be directly interfaced from the MCU.
This IC can control 4 mode output function (Forward, Reverse, Brake, Open) by input logic.
This IC can drive various type of micro motor and low loss by parallel drive because each block is very accurate for high speed drive and independent input/output circuit.
MPC17533 Maximum Ratings
| Rating |
Symbol |
Min. |
Max. |
Unit |
| Driver Circuit Power Supply Voltage |
VM |
- 0.5 |
8.0 |
V |
| Pre-Driver Circuit Power Supply Voltage |
VG |
- 0.5 |
14.0 |
V |
| Control Circuit Power Supply Voltage |
VC |
- 0.5 |
7.0 |
V |
| Singnal Input Voltage |
VIN |
- 0.5 |
VC+0.5 |
V |
| Driver Output Current (continuous) |
IDR |
--- |
0.7 |
A |
| Driver Output Current (pulsed) *2 |
IDRp |
--- |
1.4 |
A |
| Operating Junction Temperature |
Tj |
-55 |
150 |
degC |
| Storage Temperature Range |
Tstg |
--- |
150 |
degC |
| Thermal Resistance *3 |
ROja |
150 |
degC./W | |
| Power Dissipation *4 |
PD |
--- |
830 |
mW |
*1) Device may be damaged when used over the ratings.
*2) Ta=25C, Peak time is within 10ms at intervals 0.2seconds.
*3) 37 X 50 X 1.6[mm] Glass EPOXY Board mount.
*4) Ta=25C
MPC17533 Features
· Manufactured by SMOS5AP process technology
·Built in 2 Channel Circuit of H-Bridge Driver
· 4 Mode Drive(Forward, Reverse, Brake, Open)
· Direct Interface from the MCU
· Low ON-Resistance Ron=0.8 ohm(typ)
· IDR=0.7A (Cont.)
· Low Consumption Power
· Built in Shoot Through Current Prevention Circuit
· Built in Low Voltage Shutdown Circuit
·PWM Control frequency 200kHz(Max.)
·Comes in 16-pin Very Fine Mini-flat Package (pin pitch : 0.65mm)
·Dual Channel Parallel Drive (Ron=0.8 ohm:typ)
·Built in 2 Channel Circuit of H-Bridge Driver
· 4 Mode Drive(Forward, Reverse, Brake, Open)
· Direct Interface from the MCU
· Low ON-Resistance Ron=0.8 ohm(typ)
· IDR=0.7A (Cont.)
· Low Consumption Power
· Built in Shoot Through Current Prevention Circuit
· Built in Low Voltage Shutdown Circuit
·PWM Control frequency 200kHz(Max.)
·Comes in 16-pin Very Fine Mini-flat Package (pin pitch : 0.65mm)
·Dual Channel Parallel Drive (Ron=0.8 ohm:typ)

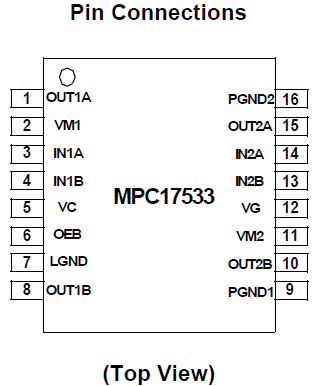

MPC17533 Connection Diagram
MPC17533
PDF/DataSheet Download
- Datasheet: MPC17533
- File Size: 1072271 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
