Part Number: MPC506A
Description: The MPC506A is a 16-channel single-ended analog multiplexer, and the MPC507A is an 8-channel different...
- Table of contents:
MPC506A
-
Suppliers
DataSheet
General Description
MPC506A General Description
The MPC506A is a 16-channel single-ended analog multiplexer, and the MPC507A is an 8-channel differential multiplexer.
The MPC506A and MPC507A multiplexers have input overvoltage protection. Analog input voltages may exceed either power supply voltage without damaging the device or disturbing the signal path of other channels. The protection circuitry assures that signal fidelity is maintained even under fault conditions that would destroy other multiplexers. Analog inputs can withstand 70VPP signal levels and standard ESD tests. Signal sources are protected from short circuits should multiplexer power loss occur; each input presents a 1k resistance under this condition. Digital inputs can also sustain continuous faults up to 4V greater than either supply voltage.
These features make the MPC506A and MPC507A ideal for use in systems where the analog signals originate from external equipment or separately powered sources.
The MPC506A and MPC507A are fabricated with Burr- Brown's dielectrically isolated CMOS technology. The multiplexers are available in plastic DIP and plastic SOIC packages. Temperature range is 40/+85°C.
MPC506A Maximum Ratings
| Voltage between supply pins ............................................................... 44V VREF to ground, V+ to ground ............................................................... 22V V to ground ................................................. 25V Digital input overvoltage: VEN, VA: VSUPPLY (+) .......................................... +4V VSUPPLY () ................................................. 4V or 20mA, whichever occurs first. Analog input overvoltage: VS: VSUPPLY (+) .............................................. +20V VSUPPLY () ................................................ 20V Continuous current, S or D ................................... 20mA Peak current, S or D (pulsed at 1ms, 10% duty cycle max) .......................... 40mA Power dissipation* ........................................... 2.0W Operating temperature range ...................... 40°C to +85°C Storage temperature range ....................... 65°C to +150°C *Derate 20.0mW/°C above TA = 70 |
|
NOTE: (1) Absolute maximum ratings are limiting values, applied individually, beyond which the serviceability of the circuit may be impaired. Functional operation under any of these conditions is not necessarily implied. |
MPC506A Features
·ANALOG OVERVOLTAGE PROTECTION: 70VPP
· NO CHANNEL INTERACTION DURING OVERVOLTAGE
·BREAK-BEFORE-MAKE SWITCHING
· ANALOG SIGNAL RANGE: ±15V
· STANDBY POWER: 7.5mW typ
· TRUE SECOND SOURCE
· NO CHANNEL INTERACTION DURING OVERVOLTAGE
·BREAK-BEFORE-MAKE SWITCHING
· ANALOG SIGNAL RANGE: ±15V
· STANDBY POWER: 7.5mW typ
· TRUE SECOND SOURCE

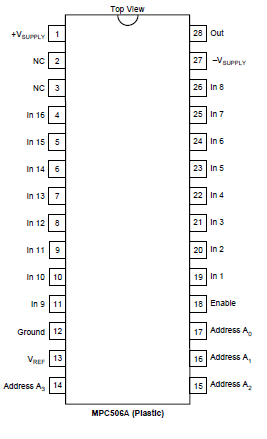

MPC506A Connection Diagram
MPC506A
