General Description
MPC948L General Description
The MPC948L is a 1:12 low voltage clock distribution chip. The device is pin and function compatible with the MPC948 with the added feature of 2.5V output capabilities. The device features the capability to select either a differential LVPECL or a LVTTL compatible input. The 12 outputs are 2.5V LVCMOS or LVTTL compatible and feature the drive strength to drive 50 series terminated transmission lines. With outputtooutput skews of 350ps, the MPC948L is ideal as a clock distribution chip for the most demanding of synchronous systems.
MPC948L Maximum Ratings
| Symbol | Parameter | Min | Max | Unit |
| VCC | Supply Voltage | -0.3 | 4.6 | V |
| VI | Input Voltage | -0.3 | VDD + 0.3 | V |
| VIN | Input Current | ±20 | mA | |
| TStor | Storage Temperature Range | -40 | 125 | °C |
these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation
under absolutemaximumrated conditions is not implied.
MPC948L Features
• Clock Distribution for Intel Microprocessors
• LVPECL or LVCMOS/LVTTL Clock Input
• 350ps Maximum OutputtoOutput Skew
• Drives Up to 24 Independent Clock Lines
• Maximum Output Frequency of 150MHz
• Synchronous Output Enable
• Tristatable Outputs
• 32Lead TQFP Packaging
• 2.5V Output Capability
• LVPECL or LVCMOS/LVTTL Clock Input
• 350ps Maximum OutputtoOutput Skew
• Drives Up to 24 Independent Clock Lines
• Maximum Output Frequency of 150MHz
• Synchronous Output Enable
• Tristatable Outputs
• 32Lead TQFP Packaging
• 2.5V Output Capability

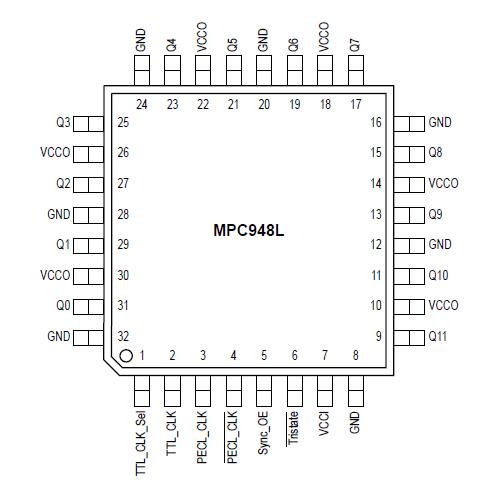

MPC948L Connection Diagram
MPC948L
PDF/DataSheet Download
- Datasheet: MPC948L
- File Size: 108614 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
