Description: The MPC9993 Intelligent Dynamic Clock Switch (IDCS) circuit continuously monitors both input CLK signa...
- Table of contents:
MPC9993
-
Suppliers
DataSheet
General Description
MPC9993 General Description
The MPC9993 Intelligent Dynamic Clock Switch (IDCS) circuit continuously monitors both input CLK signals. Upon detection of a failure (CLK stuck HIGH or LOW for at least 1 period), the INP_BAD for that CLK will be latched (H). If that CLK is the primary clock, the IDCS will switch to the good secondary clock and phase/frequency alignment will occur with minimal output phase disturbance. The typical phase bump caused by a failed clock is eliminated. (See Application Information section).
MPC9993 Maximum Ratings
| Symbol | Characteristics | Min | Max | Unit | Condition |
| VCC | Supply Voltage | 0.3 | 3.6 | V | |
| VIN | DC Input Voltage | 0.3 | VCC+0.3 | V | |
| VOUT | DC Output Voltage | 0.3 | VCC+0.3 | V | |
| IIN | DC Input Current | ±20 | mA | ||
| IOUT | DC Output Current | ±50 | mA | ||
| TS | Storage Temperature | -65 | 150 |
a. Absolute maximum continuous ratings are those maximum values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation at absolute-maximum-rated conditions is not implied.
MPC9993 Features
• Fully Integrated PLL
• Intelligent Dynamic Clock Switch
• LVPECL Clock Outputs
• LVCMOS Control I/O
• 3.3V Operation
• 32Lead LQFP Packaging
• SiGe technology supports near-zero output skew
• Intelligent Dynamic Clock Switch
• LVPECL Clock Outputs
• LVCMOS Control I/O
• 3.3V Operation
• 32Lead LQFP Packaging
• SiGe technology supports near-zero output skew

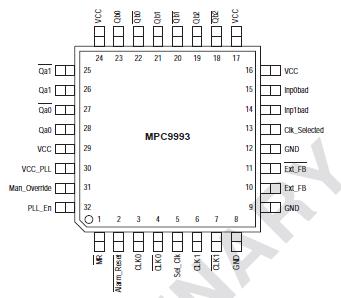

MPC9993 Connection Diagram
MPC9993
PDF/DataSheet Download
- Datasheet: MPC9993
- File Size: 113281 KB
- Manufacturer: Motorola
- Click here to Download
