MPU150

Features:

• Power Factor Correction (PFC) Meets EN61000/3/2
• Low Profile Height Fits 1U Constraints
• Dual Main Outputs Provide 3.3V and 5V for Mixed Mode Applications
• Single Wire Current Sense on Outputs V1 and V2
• Remote Sense on Outputs V1 and V2
• Overtemperature, Overload, and Overvoltage Protection
• Available with Metric or SAE Mountings
• Greater than 340,000 Hours MTBF
• MDU150 Models have 48VDC Input


Description

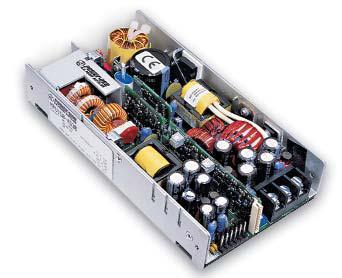

The innovative MPU150 incorporate Power Factor Correction (PFC) with a low profile package designed to meet 1U height constraints. The MPU150-4530 and MPU150-4350 provide high current +3.3V and +5V on a single platform to support mixed mode, high speed digital circuitry. Power-One's unique dual converter architecture combines high reliability with exceptional regulation. All multiple output models feature remote sense on outputs V1 and V2 to provide independent compensation of output cable losses. Other standard features include independent current sharing on V1 and V2, thermal shutdown, and remote inhibit. Airflow of 300 linear feet per minute (LFM) is required to deliver the full power density of 3.0 watts per cubic inch.

The MDU150 series provides the same benefits as the MPU150 series, with nominal 48 volt DC input.
