Part Number: MPY534



MFG: 30

Package Cooled: TI



Description: The MPY534 is a high accuracy, general purpose four-quadrant analog multiplier. Its accurately laser trimmed transfer c...


Urgent Purchase

MPY534 General Description


The MPY534 is a high accuracy, general purpose four-quadrant analog multiplier. Its accurately laser trimmed transfer characteristics make it easy to use in a wide variety of applications with a minimum of external parts and trimming circuitry. Its differential X, Y and Z inputs allow configuration as multiplier, squarer, divider, square-rooter and other functions while maintaining high accuracy.

The wide bandwidth of this new design allows accurate signal processing at higher frequencies suitable for video signal processing. It is capable of performing IF and RF frequency mixing, modulation and demodulation with excellent carrier rejection and very simple feedthrough adjustment.

An accurate internal voltage reference provides precise setting of the scale factor. The differential Z input allows user selected scale factors from 0.1 to 10 using external feedback resistors.

MPY534 Maximum Ratings

PARAMETER
MPY534J, K, L
MPY534S, T
Power Supply Voltage

Power Dissipation

Output Short-Circuit to Ground

Input Voltage (all X, Y and Z)

Operating Temperature Range

Storage Temperature Range

Lead Temperature (soldering, 10s)
±18

500mW

Indefinite

±VS

0°C to +70°C

65°C to +150°C

+300°C
±20

*

*

*

55°C to +125°C

*

*

*Specification same as for MPY534K.

MPY534 Features

·±0.25% max 4-QUADRANT ACCURACY
·WIDE BANDWIDTH: 1MHz min, 3MHz typ
·ADJUSTABLE SCALE FACTOR
·STABLE AND RELIABLE MONOLITHIC CONSTRUCTION
·LOW COST

MPY534 Typical Application

·PRECISION ANALOG SIGNAL PROCESSING
·VIDEO SIGNAL PROCESSING
·VOLTAGE CONTROLLED FILTERS AND OSCILLATORS
·MODULATION AND DEMODULATION
·RATIO AND PERCENTAGE COMPUTATION

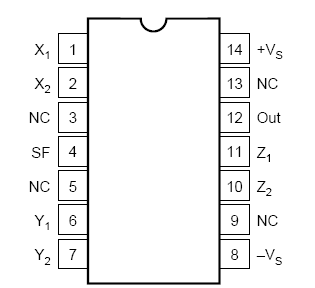

MPY534 Connection Diagram

MPY534 Connection Diagram

MPY534 datasheet

MPY534
PDF/DataSheet Download

  • Datasheet: MPY534
  • File Size: 118810 KB
  • Manufacturer: BURR-BROWN [Burr-Brown Corporation]
  • Click here to Download
