Purchase MR2501L, In-stock MR2501L From SeekIC.
Part Number: MR2501L
Description: Rating at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60 Hz, resistive or indu...
- Table of contents:
MR2501L
-
Suppliers
DataSheet
General Description
MR2501L General Description
Rating at 25 °C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
| RATING |
SYMBOL |
MR 2500L |
MR 2501L |
MR 2502L |
MR 2504L |
MR 2506L |
MR 2508L |
MR 2510L |
MR 2512L |
UNIT |
| Maximum Repetitive Peak Reverse Voltage |
VRRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
1200 |
Volts |
| Maximum RMS Voltage |
VRMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
840 |
Volts |
| Maximum DC Blocking Voltage |
VDC |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
1200 |
Volts |
| Average Rectified Forward Current Tc = 150°C |
IF(AV) |
25 |
Amps. | |||||||
| Peak Forward Surge Current Single half sine wave superimposed on rated load (JEDEC Method) |
IFSM |
400 |
Amps. | |||||||
| Maximum Forward Voltage at IF = 25 Amps. |
VF |
1.0 |
Volts | |||||||
| Maximum DC Reverse Current Ta = 25 °C at rated DC Blocking Voltage Ta = 100 °C |
IR |
5.0 |
A | |||||||
|
IR(H) |
1.0 |
mA | ||||||||
| Thermal Resistance (Note 1) |
RqJC |
0.8 |
°C/W | |||||||
| Junction Temperature Range |
TJ |
- 65 to + 175 |
°C | |||||||
| Storage Temperature Range |
TSTG |
- 65 to + 175 |
°C | |||||||
| Marking Code | ||||||||||
MR2501L Features
·High current capability
·High surge current capability
·High reliability
·Low reverse current
·Low forward voltage drop
·High surge current capability
·High reliability
·Low reverse current
·Low forward voltage drop
MR2501L
PDF/DataSheet Download
- Datasheet: MR2501L
- File Size: 17199 KB
- Manufacturer: EIC [EIC discrete Semiconductors]
- Click here to Download
- ·MR231A
- MICRO-ELECTRONICS [Micro Electronics]
- 0.3 DUAL DIGIT NUMBERIC DISPLAYS
- 62963 KB
- ·MR231C
- MICRO-ELECTRONICS [Micro Electronics]
- 0.3 DUAL DIGIT NUMBERIC DISPLAYS
- 62963 KB
- ·MR2400
- MCC [Micro Commercial Components]
- Recovery Rectifier 50 - 1000 Volts 24 Amp
- 101646 KB
- ·MR2401
- MCC [Micro Commercial Components]
- Recovery Rectifier 50 - 1000 Volts 24 Amp
- 101646 KB
- ·MR2402
- MCC [Micro Commercial Components]
- Recovery Rectifier 50 - 1000 Volts 24 Amp
- 101646 KB
- ·MR2404
- MCC [Micro Commercial Components]
- Recovery Rectifier 50 - 1000 Volts 24 Amp
- 101646 KB
- ·MR2406
- MCC [Micro Commercial Components]
- Recovery Rectifier 50 - 1000 Volts 24 Amp
- 101646 KB
- ·MR2406FR
- MCC [Micro Commercial Components]
- 24 Amp Rectifier 600 Volts
- 399105 KB
MR2501L Relative Products
MR-2501

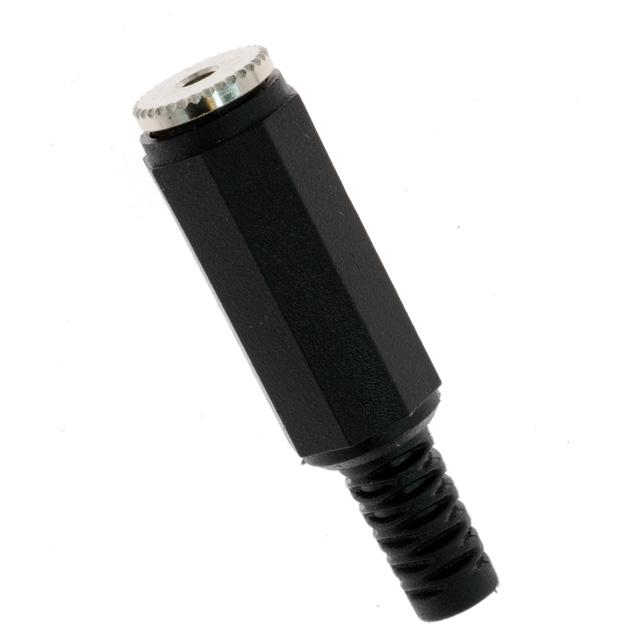

CONN 2.5MM FEMALE MONO JACK
