Position: Home  > All Categories> Integrated Circuits (ICs) > MR2A16A_1248103

MR2A16A_1248103

Features: • Single 3.3-V power supply• Commercial temperature range (0 to 70)• Symmetrical high-speed read and write with fast access time (25 ns)• Flexible data bus control - 8 bit or 16 bit access• Equal address and chip-enable access times• Automatic data pro...

product image

MR2A16A_1248103 Picture
See larger image
SeekIC No. : 004426624 Detail

MR2A16A_1248103: Features: • Single 3.3-V power supply• Commercial temperature range (0 to 70)• Symmetrical high-speed read and write with fast access time (25 ns)• Flexible data bus control ...

MR2A16A_1248103 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MR2A16A_1248103
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3.3-V power supply
• Commercial temperature range (0 to 70)
• Symmetrical high-speed read and write with fast access time (25 ns)
• Flexible data bus control - 8 bit or 16 bit access
• Equal address and chip-enable access times
• Automatic data protection with low-voltage inhibit circuitry to prevent writes on power loss
• All inputs and outputs are transistor-transistor logic (TTL) compatible
• Fully static operation
• Full nonvolatile operation with 10 years minimum data retention


Pinout

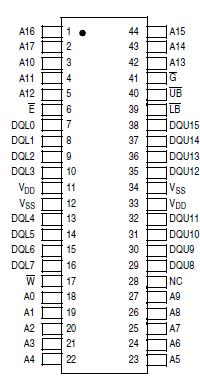

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply voltage VDD 0.5 to 4.6 V
Voltage on any pin VIn 0.5 to VDD + 0.5 V
Output current per pin IOut ±20 mA
Package power dissipation PD TBD W
Temperature under bias TBias 10 to 85
Storage temperature Tstg 55 to 150
Lead temperature during solder (3 minute max) TLead 235
Maximum magnetic field at package surface Hmax 20 oe
NOTES:
1. Permanent device damage may occur if absolute maximum ratings are exceeded. Functional operation
should be restricted to recommended operating conditions. Exposure to excessive voltages or magnetic fields
could affect device reliability.
2. All voltages are referenced to VSS.
3. Power dissipation capability depends on package characteristics and use environment.
