MRF5S9101MBR1
-
Suppliers
DataSheet
General Description
MRF5S9101MBR1 Maximum Ratings
| Rating | Symbol | Value | Unit |
| Drain-Source Voltage | VDSS | - 0.5, +68 | Vdc |
| Gate-Source Voltage | VGS | -0.5, +15 | Vdc |
| Total Device Dissipation @ TC = 25°C Derate above 25°C |
PD | 427 2.44 |
W W/°C |
| Storage Temperature Range | Tstg | - 65 to +150 | °C |
| Operating Junction Temperature | TJ | 200 | °C |
MRF5S9101MBR1 Typical Application
GSM Application
• Typical GSM Performance: VDD = 26 Volts, IDQ = 700 mA, Pout =100 Watts CW, Full Frequency Band (869-894 MHz and 921-960 MHz)
Power Gain - 17.5 dB
Drain Efficiency - 60%
GSM EDGE Application
• Typical GSM EDGE Performance: VDD = 28 Volts, IDQ = 650 mA, Pout =50 Watts Avg., Full Frequency Band (869-894 MHz and 921-960 MHz
Power Gain - 18 dB
Spectral Regrowth @ 400 kHz Offset = -63 dBc
Spectral Regrowth @ 600 kHz Offset = -78 dBc
EVM - 2.3% rms
• Capable of Handling 10:1 VSWR, @ 26 Vdc, @ 100 W CW Output Power,@ f = 960 MHz
• Characterized with Series Equivalent Large-Signal Impedance Parameters
• Internally Matched for Ease of Use
• Qualified Up to a Maximum of 32 VDD Operation
• Integrated ESD Protection
• N Suffix Indicates Lead-Free Terminations
• 200°C Capable Plastic Package
• In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.
• Typical GSM Performance: VDD = 26 Volts, IDQ = 700 mA, Pout =100 Watts CW, Full Frequency Band (869-894 MHz and 921-960 MHz)
Power Gain - 17.5 dB
Drain Efficiency - 60%
GSM EDGE Application
• Typical GSM EDGE Performance: VDD = 28 Volts, IDQ = 650 mA, Pout =50 Watts Avg., Full Frequency Band (869-894 MHz and 921-960 MHz
Power Gain - 18 dB
Spectral Regrowth @ 400 kHz Offset = -63 dBc
Spectral Regrowth @ 600 kHz Offset = -78 dBc
EVM - 2.3% rms
• Capable of Handling 10:1 VSWR, @ 26 Vdc, @ 100 W CW Output Power,@ f = 960 MHz
• Characterized with Series Equivalent Large-Signal Impedance Parameters
• Internally Matched for Ease of Use
• Qualified Up to a Maximum of 32 VDD Operation
• Integrated ESD Protection
• N Suffix Indicates Lead-Free Terminations
• 200°C Capable Plastic Package
• In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.
MRF5S9101MBR1
PDF/DataSheet Download
- Datasheet: MRF5S9101MBR1
- File Size: 474543 KB
- Manufacturer: FREESCALE [Freescale Semiconductor, Inc]
- Click here to Download
- ·MRF01-J-178
- HIROSE [Hirose Electric]
- Push-On Coaxial Connectors (PC Card Type 2 Mountable)
- 108632 KB
- ·MRF01J-HRMJ
- HIROSE [Hirose Electric]
- Push-On Coaxial Connectors (PC Card Type 2 Mountable)
- 108632 KB
- ·MRF01P-HRMJ
- HIROSE [Hirose Electric]
- Push-On Coaxial Connectors (PC Card Type 2 Mountable)
- 108632 KB
- ·MRF01-PR-1
- HIROSE [Hirose Electric]
- Push-On Coaxial Connectors (PC Card Type 2 Mountable)
- 108632 KB
- ·MRF01-PR-178
- HIROSE [Hirose Electric]
- Push-On Coaxial Connectors (PC Card Type 2 Mountable)
- 108632 KB
- ·MRF01-R-1
- HIROSE [Hirose Electric]
- Push-On Coaxial Connectors (PC Card Type 2 Mountable)
- 108632 KB
- ·MRF01-R-178
- HIROSE [Hirose Electric]
- Push-On Coaxial Connectors (PC Card Type 2 Mountable)
- 108632 KB
- ·MRF03
- HIROSE [Hirose Electric]
- SMT Low-Profile Coaxial Multiple Contact Connectors
- 271264 KB
MRF5S9101MBR1 Relative Products

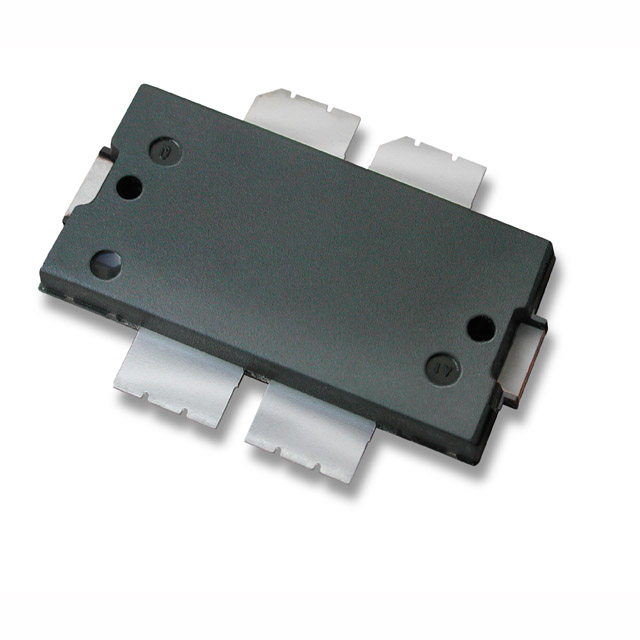

MRF5S9100NR1
