General Description
MS5534B General Description
The MS5534B is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. It provides a 16 Bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5534B is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller. Sensor packaging options are plastic or metal cap.
Compared to the previous version (MS5534A) the temperature range has been improved (-40 to +125) as well as the pressure range (measurement down to 10 mbar). Other improvements concern the ESD sensitivity, current consumption and converter accuracy.
MS5534B Maximum Ratings
| Parameter | Symbol | Conditions | Min | Max | Unit | Notes |
| Supply voltage | VDD | Ta = 25 | -0.3 | 4 | V | |
| Storage temperature | TS | -40 | +125 | 1 | ||
| Overpressure | P | Ta = 25 | 10 | bar | 2 |
MS5534B Features
` Supply voltage 2.2 V to 3.6 V
` Low supply current
` -40 to +125 operation temperature
` No external components required
` Low supply current
` -40 to +125 operation temperature
` No external components required
MS5534B Typical Application
· Mobile altimeter / barometer systems
· Weather control systems
· Adventure or multi-mode watches
· GPS receivers
· Weather control systems
· Adventure or multi-mode watches
· GPS receivers

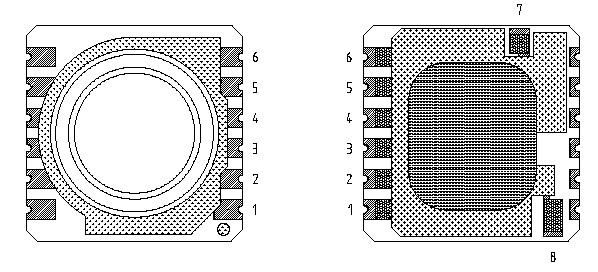

MS5534B Connection Diagram
MS5534B
PDF/DataSheet Download
- Datasheet: MS5534B
- File Size: 1040142 KB
- Manufacturer: ETC [ETC]
- Click here to Download
