General Description
MS82V16520 General Description
The MS82V16520 is a synchronous graphics random access memory organized as 256 K words ¥ 32 bits ¥ 2 banks.
This device can operate up to 143 MHz by using synchronous interface. In addition, it has 8-column Block Write function and Write per bit function which improves performance in graphics systems.
MS82V16520 Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Voltage on Power Supply Pin Relative to GND |
VCC, VCCQ | - | 1.0 to 4.6 | V |
| Voltage on Input Pin Relative to GND | VT | - | 1.0 to VCC + 0.5 4.6 | V |
| Short Circuit Output Current | IOS | - | 50 | mA |
| Power Dissipation |
PD | Ta = 25 | 1 | W |
| Operating Temperature | Topr | - | 0 to 70 | |
| Storage Temperature | Tstg | - | 55 to 150 |
MS82V16520 Features
• 262,144 words ¥ 32 bits ¥ 2 banks memory
• Single 3.3 V ±0.3 V power supply
• LVTTL compatible inputs and outputs
• All input signals are latched at rising edge of system clock
• Auto precharge and controlled precharge
• Internal pipelined operation: column address can be changed every clock cycle
• Dual internal banks controlled by A10 (Bank Address: BA)
• Independent byte operation via DQM0 to DQM3
• 8-column Block Write function
• Persistent write per bit function
• Programmable burst sequence (Sequential/Interleave)
• Programmable burst length (1, 2, 4, 8 and full page)
• Programmable CAS latency (2, 3)
• Burst stop function (full-page burst)
• Power Down operation and Clock Suspend operation
• Auto refresh and self refresh capability
• 2,048 refresh cycles/32 ms
• Package:
100-pin plastic QFP (QFP100-P-1420-0.65-BK4) (Product : MS82V16520-xGA)
x indicates speed rank.• 262,144 words ¥ 32 bits ¥ 2 banks memory
• Single 3.3 V ±0.3 V power supply
• LVTTL compatible inputs and outputs
• All input signals are latched at rising edge of system clock
• Auto precharge and controlled precharge
• Internal pipelined operation: column address can be changed every clock cycle
• Dual internal banks controlled by A10 (Bank Address: BA)
• Independent byte operation via DQM0 to DQM3
• 8-column Block Write function
• Persistent write per bit function
• Programmable burst sequence (Sequential/Interleave)
• Programmable burst length (1, 2, 4, 8 and full page)
• Programmable CAS latency (2, 3)
• Burst stop function (full-page burst)
• Power Down operation and Clock Suspend operation
• Auto refresh and self refresh capability
• 2,048 refresh cycles/32 ms
• Package:
100-pin plastic QFP (QFP100-P-1420-0.65-BK4) (Product : MS82V16520-xGA) x indicates speed rank.
• Single 3.3 V ±0.3 V power supply
• LVTTL compatible inputs and outputs
• All input signals are latched at rising edge of system clock
• Auto precharge and controlled precharge
• Internal pipelined operation: column address can be changed every clock cycle
• Dual internal banks controlled by A10 (Bank Address: BA)
• Independent byte operation via DQM0 to DQM3
• 8-column Block Write function
• Persistent write per bit function
• Programmable burst sequence (Sequential/Interleave)
• Programmable burst length (1, 2, 4, 8 and full page)
• Programmable CAS latency (2, 3)
• Burst stop function (full-page burst)
• Power Down operation and Clock Suspend operation
• Auto refresh and self refresh capability
• 2,048 refresh cycles/32 ms
• Package:
100-pin plastic QFP (QFP100-P-1420-0.65-BK4) (Product : MS82V16520-xGA)
x indicates speed rank.• 262,144 words ¥ 32 bits ¥ 2 banks memory
• Single 3.3 V ±0.3 V power supply
• LVTTL compatible inputs and outputs
• All input signals are latched at rising edge of system clock
• Auto precharge and controlled precharge
• Internal pipelined operation: column address can be changed every clock cycle
• Dual internal banks controlled by A10 (Bank Address: BA)
• Independent byte operation via DQM0 to DQM3
• 8-column Block Write function
• Persistent write per bit function
• Programmable burst sequence (Sequential/Interleave)
• Programmable burst length (1, 2, 4, 8 and full page)
• Programmable CAS latency (2, 3)
• Burst stop function (full-page burst)
• Power Down operation and Clock Suspend operation
• Auto refresh and self refresh capability
• 2,048 refresh cycles/32 ms
• Package:
100-pin plastic QFP (QFP100-P-1420-0.65-BK4) (Product : MS82V16520-xGA) x indicates speed rank.

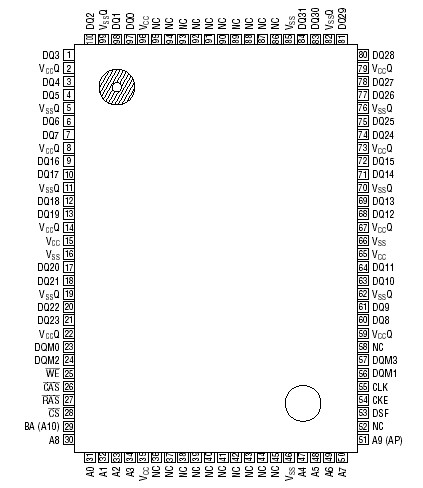

MS82V16520 Connection Diagram
