Purchase MSA-0685, In-stock MSA-0685 From SeekIC.
MFG:HP D/C:N/A
Part Number: MSA-0685
MFG: HP
D/C: N/A
Description: The MSA-0685 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) hous...
- Table of contents:
MSA-0685
-
Suppliers
DataSheet
General Description
MSA-0685 General Description
The MSA-0685 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost plastic package. This MMIC is designed for use as a general purpose 50 gain block. Typical applications include narrow and broad band IF and RF amplifiers in commercial and industrial applications.
The MSA-series is fabricated using HP's 10 GHz fT, 25 GHz f MAX, silicon bipolar MMIC process which uses nitride self-alignment, ion implantation, and gold metallization to achieve excellent performance, uniformity and reliability. The use of an external bias resistor for temperature and current stability also allows bias flexibility.
MSA-0685 Maximum Ratings
| Parameter | Absolute Maximum[1] |
| Device Current | 50 mA |
| Power Dissipation[2,3] | 200 mW |
| RF Input Power |
+13 dBm |
| Junction Temperature | 150 |
| Storage Temperature | 65 to 150 |
Notes:
1. Permanent damage may occur if any of these limits are exceeded.
2. TCASE = 25.
3. Derate at 9.1 mW/ for TC > 128.
4. See MEASUREMENTS section "Thermal Resistance" for more information.
MSA-0685 Features
• Cascadable 50 W Gain Block
• Low Operating Voltage:
3.5 V Typical Vd
• 3 dB Bandwidth:
DC to 0.8 GHz
• High Gain:
18.5 dB Typical at 0.5 GHz
• Low Noise Figure:
3.0 dB Typical at 0.5 GHz
• Low Cost Plastic Package
• Low Operating Voltage:
3.5 V Typical Vd
• 3 dB Bandwidth:
DC to 0.8 GHz
• High Gain:
18.5 dB Typical at 0.5 GHz
• Low Noise Figure:
3.0 dB Typical at 0.5 GHz
• Low Cost Plastic Package
MSA-0685
PDF/DataSheet Download
- Datasheet: MSA-0685
- File Size: 54155 KB
- Manufacturer: HP [Agilent(Hewlett-Packard)]
- Click here to Download
- ·MSA002
- ETC [ETC]
- Mounting Instruction
- 537342 KB
- ·MSA003
- ETC [ETC]
- Mounting Instruction
- 537342 KB
- ·MSA-0100
- HP [Agilent(Hewlett-Packard)]
- Cascadable Silicon Bipolar MMIC Amplifier
- 55814 KB
- ·MSA-0100-GP4
- HP [Agilent(Hewlett-Packard)]
- Cascadable Silicon Bipolar MMIC Amplifier
- 55814 KB
- ·MSA-0104
- HP [Agilent(Hewlett-Packard)]
- Cascadable Silicon Bipolar MMIC Amplifier
- 52692 KB
- ·MSA-0135
- HP [Agilent(Hewlett-Packard)]
- Cascadable Silicon Bipolar MMIC Amplifiers
- 53859 KB
- ·MSA-0136
- HP [Agilent(Hewlett-Packard)]
- Cascadable Silicon Bipolar MMIC Amplifiers
- 53859 KB
- ·MSA-0170
- HP [Agilent(Hewlett-Packard)]
- Cascadable Silicon Bipolar MMIC Amplifier
- 52821 KB
MSA-0685 Relative Products

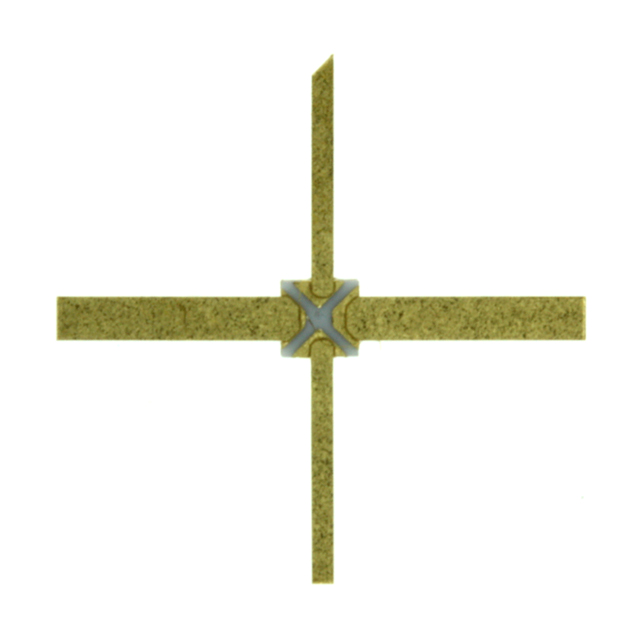

MSA-0670
