MSA4709A

Features: • B (Battery feed), S (Supervision), and H (Hybrid) functions integrated on chip.• Design to meet Central Office and PABX quality transmission requirements.• All transmission performance parameters can be externally programmable.• Free from parasitic SCR's using d...

product image

MSA4709A Picture
See larger image
SeekIC No. : 004427521 Detail

MSA4709A: Features: • B (Battery feed), S (Supervision), and H (Hybrid) functions integrated on chip.• Design to meet Central Office and PABX quality transmission requirements.• All transmis...

MSA4709A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSA4709A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• B (Battery feed), S (Supervision), and H (Hybrid) functions integrated on chip.
• Design to meet Central Office and PABX quality transmission requirements.
• All transmission performance parameters can be externally programmable.
• Free from parasitic SCR's using dielectric isolation technology.
• Size and weight reduction over conventional approaches.
• Supply voltage selectable (VBB = 24 V/48 V).
• 1 channel built-in relay driver.
• Package:
   30-pin plastic Shrink DIP (SDIP30-P-400-1.78) (Product name: MSA4709ASS)


Pinout

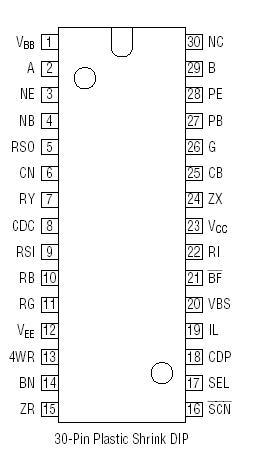

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power Supply Voltage
VBB
VBS = G
53.0 to +0.3
V
VBS = VCC
30.0 to +0.3
VCC
-
0.3 to +7.0
VEE
-
7.0 to +0.3
Digital Input Voltage
VIN
-
0.3 to VCC + 0.3
V
Relay Driver Current
IRD
VRI = H
30
mA
Operating Temperature
Top
-
0 to 80
Storage Temperature
TSTG
-
55 to 150



Description

The MSA4709A is designed to provide BSH functions and to meet PABX transmission performance requirements.

MSA4709A provides two-wire to four-wire conversion function (Hybrid).
