General Description
MSM27C3255CZ General Description
The MSM27C3255CZ is a 32Mbit electrically Programmable Read-Only Memory with page mode. Its configuration can be electrically switched between 1,048,576 double word x 32bit and 2,097,152 word x 16bit.
The MSM27C3255CZ operates on a single +5V power supply and is TTL compatible. The MSM27C3255CZ provides Page mode which can greatly reduce the read access time. Since the MSM27C3255CZ operates asynchronously , external clocks are not required , making this device easy-to-use.
The MSM27C3255CZ is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 70-pin SSOP package.
MSM27C3255CZ Maximum Ratings
|
Parameter |
Symbol |
Condition |
Value |
Unit |
| Operating temperature under bias |
Topr |
- |
0 to 70 |
°C |
| Storage temperature |
Tstg |
-55 to 125 |
°C | |
| Input voltage |
VI |
relative to VSS |
-0.5 to VCC + 0.5 |
V |
| Output voltage |
VO |
-0.5 to VCC + 0.5 |
V | |
| Power supply voltage |
VCC |
-0.5 to 7 |
V | |
| Program power supply voltage |
VPP |
-0.5 to 12.5 |
V | |
| Power dissipation per package |
PD |
- |
1.0 |
W |
MSM27C3255CZ Features
• 1,048,576 double word x 32bit / 2,097,152 word x 16bit electrically switchable configuration
• Single +5V power supply
• Access time 100ns Page mode access time 30ns
• Input / Output TTL compatible
• Three-state output
• Packages
• Single +5V power supply
• Access time 100ns Page mode access time 30ns
• Input / Output TTL compatible
• Three-state output
• Packages

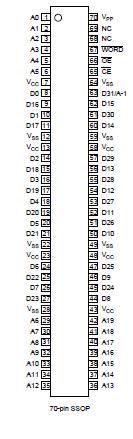

MSM27C3255CZ Connection Diagram
MSM27C3255CZ
